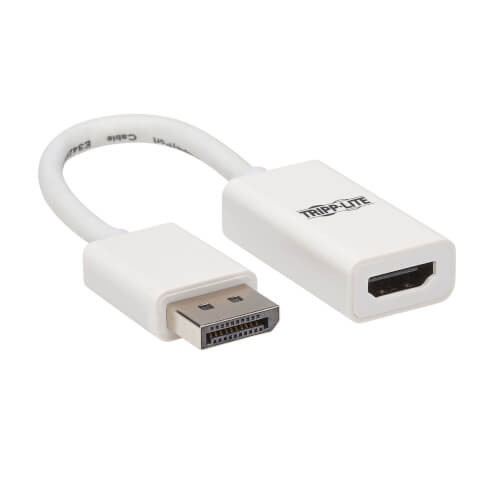

Eaton P136-06N-HDR-W - 4K60HZ HDR DP/HDMI ACTVE ADPTR
$34.57
- Brand
- Eaton
- SKU:
- P136-06N-HDR-W
- Availability:
- Within 2 Days Shipping
DisplayPort to HDMI Adapter Connects a 4K HDMI Monitor to Your Computer
Expand the potential of your DisplayPort computer or notebook by connecting it to a 4K HDMI-enabled television, monitor or projector. This active converter helps you transmit digital audio and 4K video from the DisplayPort 1.2 output on your PC, Mac, Chromebook, MacBook, Microsoft Surface or other compatible computer or tablet. It? an ideal tool for working in high-definition photography, videography or cinematography, as well as streaming video for digital signage in crystal-clear 4K.
More Convenient, Less Expensive Way to Watch 4K Video
This active adapter features a male DP connector and a female HDMI connector, allowing you to continue using your existing HDMI display and HDMI cable (such as P568-Series cables) to transmit video signals without the expense of a new DP display.
Transmits Crystal-Clear 4K HDMI Video with HDR and 4:4:4 Color
The P136-06N-HDR-W supports Ultra HD video resolutions up to 4K at 60 Hz (3840 x 2160). It? compatible with HDMI standards for carrying HDR signals, which provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play DisplayPort to HDMI active converter requires no software, drivers or external power. It? compatible with both Single- and Dual-Mode (DP++) DP output and is recommended for use with graphics cards that do not output DP++ signals. The compact unit fits easily into a briefcase or laptop bag for connecting on the go. The P136-06N-HDR-W is backward compatible with 1080p displays and pre-1.2 DisplayPort sources, allowing you to use the adapter with older equipment.
- P136-06N-HDR-W DisplayPort to HDMI 4K Adapter (M/F), White, 6 in.
- Quick Start Guide
OVERVIEW
UPC Code | 037332241252 |
Product Type | Video Adapter |
Technology | HDMI; DisplayPort |
VIDEO
Max Supported Video Resolution | 3840 x 2160 (4K) @ 60Hz |
HDR Support | Yes |
3D Video Supported | Yes |
Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
INPUT
Built-In Cable Length (m) | 0.1 |
Built-In Cable Length (cm) | 10 |
Bus Powered | Yes |
PHYSICAL
Color | White |
Material of Construction | ABS, PVC |
Cable Jacket Material | PVC |
Cable Jacket Rating | VW-1 |
Cable Outer Diameter (OD) | 4.8mm |
Unit Dimensions (hwd / cm) | 1.2 x 2.2 x 4.17 |
Unit Weight (kg) | 0.04 |
ENVIRONMENTAL
Operating Temperature Range | 32? to 113?F (0? to 45?C) |
Storage Temperature Range | 14? to 158?F (-10? to 70?C) |
Operating Humidity Range | 10% to 85% RH (No Condensation) |
Storage Humidity Range | 5% to 90% RH (No Condensation) |
COMMUNICATIONS
EDID Compatible | Yes |
CONNECTIONS
Side A - Connector 1 | (1) DISPLAYPORT (MALE) |
Side B - Connector 1 | (1) HDMI (FEMALE) |
FEATURES & SPECIFICATIONS
Displayport Specification | 1.2 |
HDCP Specification | 2.2 |
STANDARDS & COMPLIANCE
Product Compliance | CE (Europe); FCC (USA); REACH; RoHS; UKCA; WEEE |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
