Eaton P581-006 - 6FT DSPLAYPRT TO DVI SNGL LNK

Write a Review

$45.15

Brand

Eaton

SKU:

P581-006

Condition:

New

Description
0 Reviews

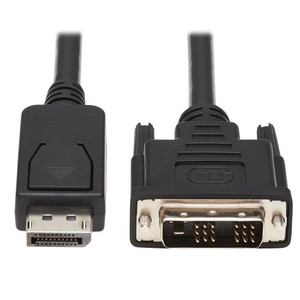

The P581-006 DisplayPort to DVI-D Cable Adapter (M/M) allows you to connect a computer with a DisplayPort connection to a high-definition television or monitor with a DVI input. Digital video signals are passed through with full 1080p video resolution. Fully molded ends are designed to last a long time.

The 6-ft. (1.83 m) P581-006 is a passive adapter that requires the host computer to have a DP++ dual-mode connector, which allows HDMI and DVI signals to be passed through. Check your computer's documentation for compatibility.

DisplayPort Male to DVI-D Male, 6-ft. (1.83 m)
Single-link adapter with latches
Molded ends
1080p resolution
Passive adapter requires the connected computer have DP++ (DisplayPort ++) dual-mode port

DisplayPort to DVI-D Cable Adapter, Single-Link Adapter with Latches (M/M), 6-ft. (1.83 m)

OVERVIEW

UPC Code	037332148032
Product Type	Passive Cable
Technology	DVI; DisplayPort
Cable Type	Passive

VIDEO

Max Supported Video Resolution

1920 x 1200 (1080p)

PHYSICAL

Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Length (m)	1.83
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.17

ENVIRONMENTAL

Operating Temperature Range	32? to 158?F (0? to 70?C)
Storage Temperature Range	14? to 158?F (-10? to 70?C)
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing

CONNECTIONS

Side A - Connector 1	DISPLAYPORT (MALE)
Side B - Connector 1	DVI-D SINGLE LINK (MALE)
Connector Plating	Nickel
Contact Plating	Gold
Latching or Gripping Connector	Yes

FEATURES & SPECIFICATIONS

Displayport Specification

1.2

STANDARDS & COMPLIANCE

Product Compliance

RoHS

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

3-year limited warranty
