Eaton P586-006-DVI - 6FT MDP/DVI CBL

$24.54

Brand: Eaton
SKU:: P586-006-DVI
UPC:
Availability:: Within 2 Days Shipping

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

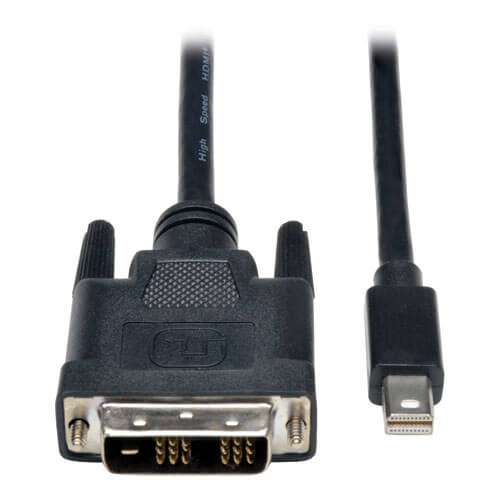

The P586-006-DVI Mini-DisplayPort to DVI cable allows you to connect a computer with Mini-DisplayPort video output to a DVI-enabled Mmonitor. It features a low-profile DVI connector that fits neatly into the available monitor space without jamming between the wall and the back of the display or impeding neighboring connectors. Male to Male design eliminates the need for separate adapter and cable. In-line passive adapter is designed for use with Dual Mode ( DP++) DisplayPort graphics cards. Supports 1920 x 1200 resolution, as well as HDTV 1080p .

6-ft. (1.83 m) Mini Displayport to DVI Adapter cable
Supports 1080P video, as well as audio ( if video card enabled )
Low-profile DVI connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
In-line Passive adapter
Plug-and-Play
This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort ++) dual-mode port

6-ft. (1.83 m) Mini Displayport to DVI Adapter Cable

OVERVIEW

UPC Code	037332180766
Product Type	Passive Cable
Technology	DVI; DisplayPort
Cable Type	Passive

VIDEO

Max Supported Video Resolution	1920 x 1200 (1080p)
Max Supported Color Depth	24-bit True Color
HDR Support	No

PHYSICAL

Color	Black
Material of Construction	ABS, PVC
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Outer Diameter (OD)	5.0 +/- 15mm
Cable Length (m)	1.83
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.11

ENVIRONMENTAL

Operating Temperature Range	32? to 104?F (0? to 40?C)
Storage Temperature Range	5? to 122?F (-15? to 50?C)
Relative Humidity	0% to 85%, Non-Condensing
Operating Humidity Range	0% to 85%, Non-Condensing
Storage Humidity Range	0% to 85%, Non-Condensing

CONNECTIONS

Side A - Connector 1	MINI DISPLAYPORT (MALE)
Side B - Connector 1	DVI-D SINGLE LINK (MALE)
Connector Plating	Nickel
Contact Plating	Gold

FEATURES & SPECIFICATIONS

Displayport Specification

1.2

STANDARDS & COMPLIANCE

Product Compliance

CE (Europe); FCC (USA); REACH; RoHS; Trade Agreements Act (TAA); UKCA; WEEE

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

3-year limited warranty
