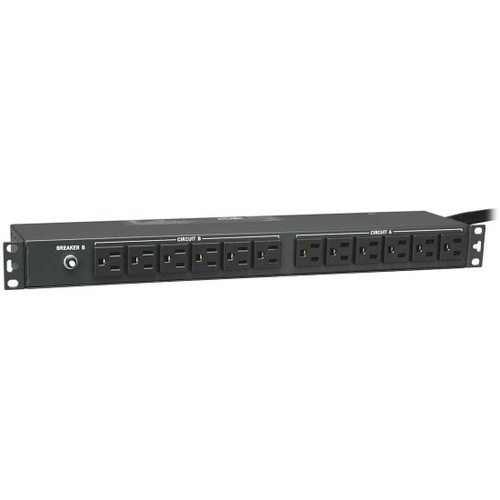

Eaton PDU2430 - PDU2430

The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot(4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory(sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.

• PDU2430 2.9kW Single-Phase 120V Basic PDU
• Mounting Hardware
• Owner's Manual

• Corded AC power distribution unit with 24 amp capacity and 24 AC receptacles (12 front / 12 rear) - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or 0U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - Attractive all-metal housing with 12 front facing and 12 rear facing receptacles measures only 2.75 inches in depth - 24 NEMA5-15R output receptacles - 15 foot AC cord NEMA L5-30 plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 24 amp total electrical capacity with two 15A circuit breakers - 120V AC, 50/60Hz electrical compatibility
