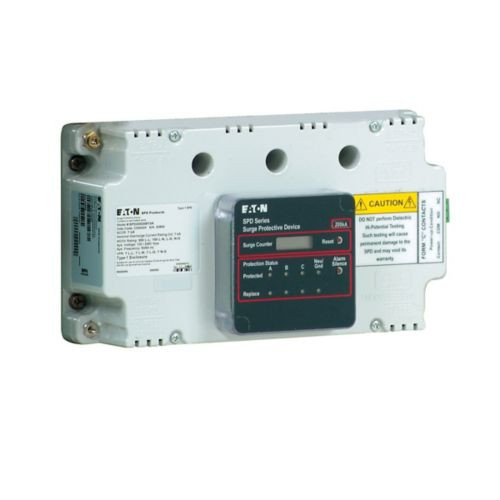

Eaton SPD050600D2J - SPD series050kA600V 3PHStandardMCC
Write a Review
Write a Review
Eaton
Eaton SPD050600D2J - SPD series050kA600V 3PHStandardMCC
$4,719.00
- Brand
- Eaton
- SKU:
- SPD050600D2J
- Availability:
- In Stock
Eaton Surge Protection Device, SPD Series, 50 kA per phase, 600V delta (4W+G) rating, 840 L-G, 840 L-L MCOV, Internal integrated, Standard feature package, used with Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD050600D2J
UPC
786685324005
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
50 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package
Type
SPD
Operating voltage
840 L-G, 840 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
600 delta (4W+G)
