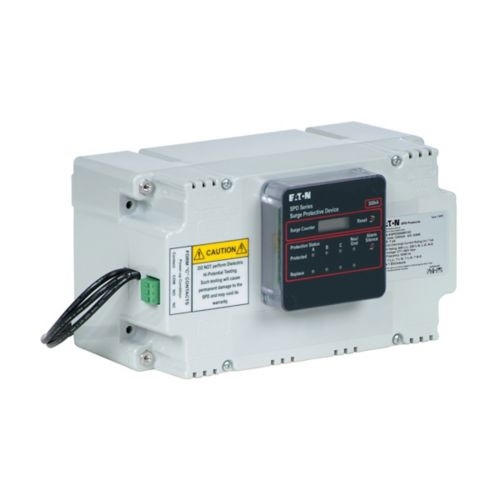

Eaton SPD100240D1J-ND - SPD series100kA240V 3PHBasicMCCNo
Write a Review
Write a Review
Eaton
Eaton SPD100240D1J-ND - SPD series100kA240V 3PHBasicMCCNo
$5,929.00
- Brand
- Eaton
- SKU:
- SPD100240D1J-ND
- Condition:
- New
Eaton Surge Protection Device, Replacement model, 240 Vdc voltage rating, Basic feature package, used with Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100240D1J-ND
UPC
786685691138
Product Length/Depth
3.54 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
3.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL Recognized
Product specifications
Short-circuit rating
200 kA
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Accessories
Basic feature package
Interrupt rating
200 kAIC
Type
Surge protection device
Operating voltage
320 L-G, 320 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Surge current
100 kA per phase
Voltage rating
240 delta (3W+G)
Nominal Discharge Current
20 kA
