Eaton SPD100240H3F - SPD series100kA240V HLSTD+CntrTop
Write a Review
Write a Review
Eaton
Eaton SPD100240H3F - SPD series100kA240V HLSTD+CntrTop
$8,435.00
- Brand
- Eaton
- SKU:
- SPD100240H3F
- Availability:
- In Stock
Eaton SPD, STD W/COUNTER PKG., TOP TERMINALS, 100 kA per phase, 240V high-leg delta (4W+G) on B phase rating, 150 L-N, 150 L-G, 150 N-G, 300 L-L MCOV, Internal integrated, and surge counter, Top Terminal Warranty Replacement
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100240H3F
UPC
786679201848
Product Length/Depth
12 in
Product Height
6 in
Product Width
12 in
Product Weight
6.8 lb
Certifications
UL 1449
UL 1283
UL Listed
UL 1283
UL Listed
Product specifications
Short-circuit rating
200 kA
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Accessories
Standard feature package and surge counter
Interrupt rating
200 kAIC
Type
Surge protection device
Used with
panelboards (PRL-C)
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Surge current
100 kA per phase
Mounting Method
Internal integrated
Voltage rating
240 delta (4W+G)
Nominal Discharge Current
20 kA
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD100240D3F - SPD series100kA240V 3PHSTD+CntrTop
$8,435.00
Eaton SPD, STD W/COUNTER PKG, TOP TERMINALS, 100 kA per phase, 240V delta (3W+G) rating, 320 L-G, 320 L-L MCOV, Internal integrated, Standard feature package and surge counter, Top Terminal Warranty...
Eaton
Eaton SPD200240H3F - SPD series200kA240V HLSTD+CntrTop
$15,366.00
Eaton Surge Protective Device, STD W/COUNTER PKG, TOP TERMINALSPD, 200KA, STD W/COUNTER PKG., TOP TERMINALS (TT) General specifications ...
Eaton
Eaton SPD160240H3F - SPD series160kA240V HLSTD+CntrTop
$12,075.00
Eaton SPD, STD W/COUNTER PKG., TOP TERMINALSPD, 160KA, STD W/COUNTER PKG., TOP TERMINALS (TT) General specifications ...
Eaton

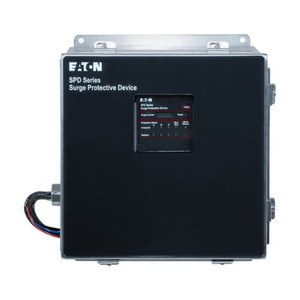

Eaton SPD100240H3O - SPD series100kA240V HLSTD+CntrNEMA
