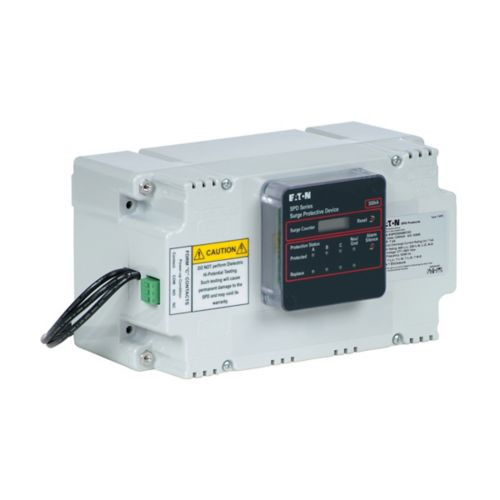

Eaton SPD100240S1J-ND - SPD series100kA120/240VBasicMCCNo
$5,929.00
- Brand
- Eaton
- SKU:
- SPD100240S1J-ND
- Availability:
- In Stock
Eaton Surge Protection Device, Replacement model, 120/240V split single-phase voltage rating, Basic feature package, used with Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100240S1J-ND
UPC
786685691176
Product Length/Depth
3.54 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
3.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
100 kA per phase
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Basic feature package
Type
Replacement model
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Model
Basic
Operating temperature
-40 to 50 ?C
Voltage rating
120/240 V split single-phase
