Eaton SPD100480Y3J - SPD series100kA277/480VSTD+CntrMCC
$8,353.00
- Brand
- Eaton
- SKU:
- SPD100480Y3J
- Availability:
- In Stock
Eaton Surge Protection Device, SPD Series, 100 kA per phase, 480Y/277V (4W+G) rating, 320 L-N, 320 L-G, 320 N-G, 640 L-L MCOV, Internal integrated, Standard feature package and surge counter, used with Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480Y3J
UPC
786685324692
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
100 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
SPD
Operating voltage
320 L-N, 320 L-G, 320 N-G, 640 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
277/480 wye (4W+G)
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD100480Y3J-ND - SPD series100kA277/480VSTD+CntrMCC
$8,195.00
Eaton Surge Protection Device, Replacement model, 480Y/277V (4W+G) voltage rating, Standard feature package and surge counter, used with Motor control centers General specifications ...
Eaton
Eaton SPD100480Y3H - SPD series100kA277/480VSTD+CntrLft
$8,353.00
Eaton SPD, Standard W/COUNTER PKG, LEFT TERMINALS , 100 kA per phase, 480Y/277V (4W+G) rating, 320 L-N, 320 L-G, 320 N-G, 640 L-L MCOV, Internal integrated, Standard feature package, Left Terminals...
Eaton

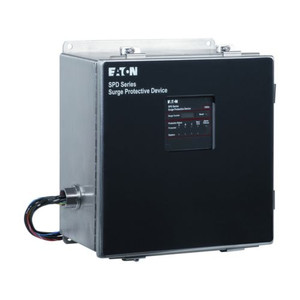

Eaton SPD100480Y3Q - SPD series100kA277/480VSTD+CntrNEM
$11,204.00
SPD, 100 kAIC, 277/480V wye (4W+G), Standard feature package and surge counter, NEMA 4X with internal disconnect stainless steel enclosure, External side mount, 320 L-N, 320 L-G, 320 N-G, 640 L-L...
Eaton

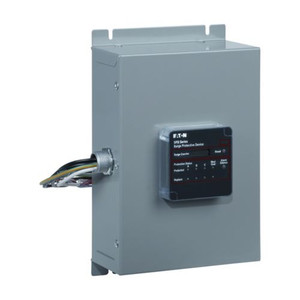

Eaton SPD100480Y3L - SPD series100kA277/480VSTD+CntrNEM
