Eaton SPD100480Y3M - SPD series100kA277/480VSTD+CntrNEM
Write a Review
Write a Review
Eaton
Eaton SPD100480Y3M - SPD series100kA277/480VSTD+CntrNEM
$10,108.00
- Brand
- Eaton
- SKU:
- SPD100480Y3M
- Availability:
- In Stock

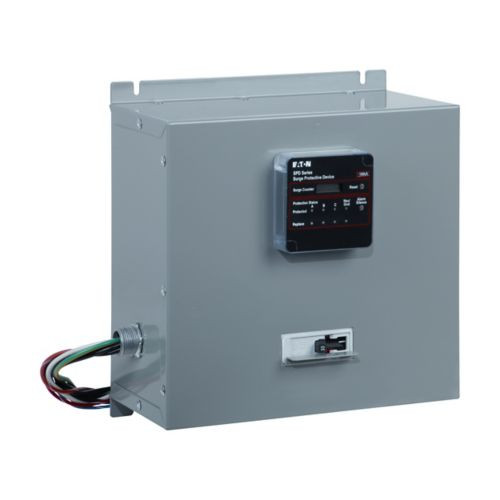

Surge Protection Device, SPD series, 100 kAIC, 277/480V wye (4W+G), Standard feature package and surge counter, NEMA 1 with internal disconnect enclosure, External side mount, 320 L-N, 320 L-G, 320 N-G, 640 L-L operating voltage
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100480Y3M
UPC
786685331973
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
Product specifications
Accessories
Standard feature package and surge counter
Interrupt rating
100 kAIC
Series
SPD
Type
Surge protection device
Operating voltage
320 L-N, 320 L-G, 320 N-G, 640 L-L
Enclosure
NEMA 1
Mounting Method
External side
Voltage rating
277/480V wye (4W+G)
