Eaton SPD100600Y1J-ND - SPD series100kA347/600VBasicMCCNo
Write a Review
Write a Review
Eaton
Eaton SPD100600Y1J-ND - SPD series100kA347/600VBasicMCCNo
$5,929.00
- Brand
- Eaton
- SKU:
- SPD100600Y1J-ND
- Availability:
- In Stock
Eaton Surge Protection Device, Replacement model, 600Y/347V (4W+G) voltage rating, Basic feature package, used with Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100600Y1J-ND
UPC
786685691145
Product Length/Depth
3.54 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
3.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
100 kA per phase
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Basic feature package
Type
Replacement model
Operating voltage
420 L-N, 420 L-G, 420 N-G, 840 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Model
Basic
Operating temperature
-40 to 50 ?C
Voltage rating
347/600 wye (4W+G)
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD100600Y1J - SPD series100kA347/600VBasicMCC
$5,929.00
Eaton Surge Protection Device, SPD Series, 100 kA per phase, 600Y/347V (4W+G) rating, 420 L-N, 420 L-G, 420 N-G, 840 L-L MCOV, Internal integrated, Basic feature package, used with Motor control...
Eaton
Eaton SPD100600Y3J-ND - SPD series100kA347/600VSTD+CntrMCC
$5,929.00
Eaton Surge Protection Device, Replacement model, 600Y/347V (4W+G) voltage rating, Standard feature package and surge counter, used with Motor control centers General specifications ...
Eaton
Eaton SPD100600Y2A - SPD series100kA347/600VStandardPan
$6,981.00
Eaton Surge Protection Device, SPD Series, 100 kA per phase, 600Y/347V (4W+G) rating, 420 L-N, 420 L-G, 420 N-G, 840 L-L MCOV, Internal integrated, Standard feature package, used with Direct bus...
Eaton

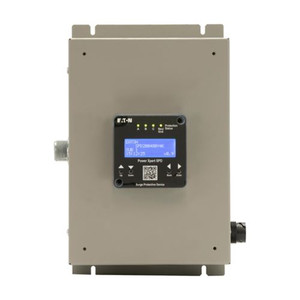

Eaton SPD100600Y4M - SPD series100kA347/600VAdvancedNEM
