Eaton SPD100600Y3B - SPD series100kA347/600VSTD+CntrSwi
Write a Review
Write a Review
Eaton
Eaton SPD100600Y3B - SPD series100kA347/600VSTD+CntrSwi
$10,176.00
- Brand
- Eaton
- SKU:
- SPD100600Y3B
- Availability:
- In Stock

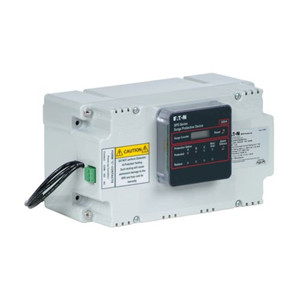

Eaton Surge Protection Device, SPD Series, 100 kA per phase, 600Y/347V (4W+G) rating, 420 L-N, 420 L-G, 420 N-G, 840 L-L MCOV, Internal integrated, Standard feature package and surge counter, used with Switchgear with remote display
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD100600Y3B
UPC
786685319315
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
3.5 lb
Warranty
15 year
Certifications
UL 1449
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
100 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
SPD
Operating voltage
420 L-N, 420 L-G, 420 N-G, 840 L-L
Used with
Switchgear with remote display
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
347/600 wye (4W+G)
