Eaton SPD250208Y3J-ND - SPD series250kA120/208VSTD+CntrMCC
Write a Review
Write a Review
Eaton
Eaton SPD250208Y3J-ND - SPD series250kA120/208VSTD+CntrMCC
MSRP:
Now:
$20,550.00
Was:
(You save
)
- Brand
- Eaton
- SKU:
- SPD250208Y3J-ND
- UPC:
- Availability:
- In Stock

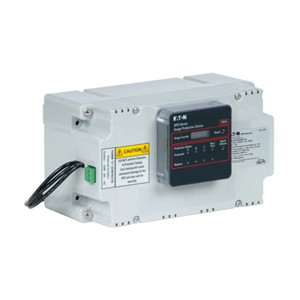

Eaton SPD Surge protective device, Replacement module, Standard with surge counter, 208/120 wye (4W+G), 250 kA per phase, No Display
Eaton SPD Surge protective device, Replacement module, Standard with surge counter, 208/120 wye (4W+G), 250 kA per phase, No Display
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD250208Y3J-ND
UPC
786679177822
Product Length/Depth
12 in
Product Height
6 in
Product Width
12 in
Product Weight
13.5 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 1449
UL 1283
UL Listed
UL 1283
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
250 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
Replacement module
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Used with
Switchboard, busways, and panelboards (PRL1a, 2a, 3a, 3e, 4)
Frequency rating
50/60 Hz
Model
Standard with surge counter
Operating temperature
-40 to 50 ?C
Maximum continuous operating voltage
150/300 V
Voltage rating
120/208 wye (4W+G)
Display
No Display
