Eaton SPD300400Y2J - SPD series300kA230/400VStandardMCC
Write a Review
Write a Review
Eaton
Eaton SPD300400Y2J - SPD series300kA230/400VStandardMCC
$25,250.00
- Brand
- Eaton
- SKU:
- SPD300400Y2J
- Availability:
- In Stock
Surge Protection Device, SPD series, For motor control centers, 300 kAIC, 230/400V wye (4W+G), Standard feature package, Internal integrated mount, 320 L-N, 320 L-G, 320 N-G, 640 L-L operating voltage
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD300400Y2J
UPC
786685326122
Product Length/Depth
9.5 in
Product Height
3.45 in
Product Width
5.4 in
Product Weight
7 lb
Warranty
15 year
Certifications
UL 1449
UL Listed
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
300 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package
Type
SPD
Operating voltage
320 L-N, 320 L-G, 320 N-G, 640 L-L
Used with
Motor control centers
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
230/400V wye (4W+G)
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD250400Y2J - SPD series250kA230/400VStandardMCC
$19,431.00
Surge Protection Device, SPD series, For motor control centers, 250 kAIC, 230/400V wye (4W+G), Standard feature package, Internal integrated mount, 320 L-N, 320 L-G, 320 N-G, 640 L-L operating...
Eaton

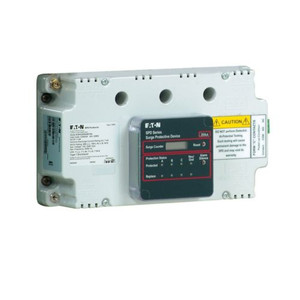

Eaton SPD100400Y2J - SPD series100kA230/400VStandardMCC
