Eaton SPD400208Y3G - SPD series400kA120/208VSTD+CntrRt
Write a Review
Write a Review
Eaton
Eaton SPD400208Y3G - SPD series400kA120/208VSTD+CntrRt
$34,243.00
- Brand
- Eaton
- SKU:
- SPD400208Y3G
- Condition:
- New
Eaton SPD, 400KA, STD W/COUNTER PKG., RIGHT TERMINALS (RT)SPD, 400KA, STD W/COUNTER PKG., RIGHT TERMINALS (RT)
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD400208Y3G
UPC
786679200339
Product Length/Depth
12 in
Product Height
6 in
Product Width
12 in
Product Weight
13.5 lb
Certifications
UL 1449
UL 1283
UL Listed
UL 1283
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
400 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
Surge protection device
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Used with
panelboards (PRL-C)
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
120/208 wye (4W+G)
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD400240S3G - SPD series400kA120/240VSTD+CntrRt
$34,243.00
Eaton, SPD, 400KA, STD W/COUNTER PKG, RIGHT TERMINALS, Standard feature package and surge counter, 120/240V split single-phase, 400 kA per phase, panel boards (PRL-C), Internal integrated ...
Eaton
Eaton SPD300208Y3G - SPD series300kA120/208VSTD+CntrRt
$26,373.00
Eaton Surge Protective Device, Standard W/COUNTER Package, RIGHT TERMINALSPD, 300KA, STD W/COUNTER PKG., RIGHT TERMINALS (RT) General specifications ...
Eaton
Eaton SPD200208Y3G - SPD series200kA120/208VSTD+CntrRt
$15,067.00
Eaton Surge Protective Device, STD W/COUNTER Package, RIGHT TERMINALSPD, 200KA, STD W/COUNTER PKG., RIGHT TERMINALS (RT) General specifications ...
Eaton
Eaton SPD250208Y3G - SPD series250kA120/208VSTD+CntrRt
$20,959.00
Eaton Surge Protective Device, RIGHT TERMINAL, STD with COUNTER Package SPD, 250KA, STD W/COUNTER PKG., RIGHT TERMINALS (RT) General specifications ...
Eaton

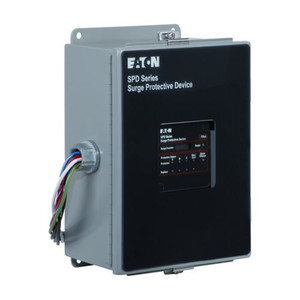

Eaton SPD400208Y3P - SPD series400kA120/208VSTD+CntrNEM
