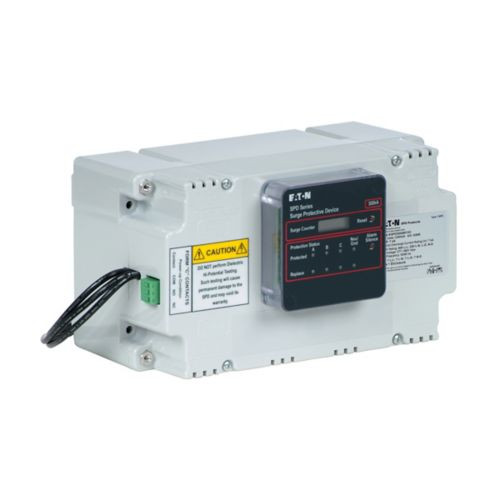

Eaton SPD400240H3B-ND - SPD series400kA240V HLSTD+CntrSwit
Write a Review
Write a Review
Eaton
Eaton SPD400240H3B-ND - SPD series400kA240V HLSTD+CntrSwit
$39,114.00
- Brand
- Eaton
- SKU:
- SPD400240H3B-ND
- Availability:
- In Stock
Surge protective device, Standard with surge counter, 240 high-leg delta (4W+G) on ????phase , 400 kA per phase, No Display, Switchgear (includes remote display)
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD400240H3B-ND
UPC
786685763156
Product Length/Depth
5.78 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
7 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A
UL Listed
UL Listed
Catalog Notes
(Please consult the factory for 240 high-leg delta (4W+G) applications with high leg on ????phase.)
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
400 kA per phase
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
Surge protection device
Operating voltage
150 L-N, 150 L-G, 150 N-G, 300 L-L
Used with
Switchgear (includes remote display)
Frequency rating
50/60 Hz
Model
Standard with surge counter
Operating temperature
-40 to 50 ?C
Voltage rating
240 delta (4W+G)
Display
No Display
