Eaton SPD400480D3F - SPD series400kA480V 3PHSTD+CntrTop
Write a Review
Write a Review
Eaton
Eaton SPD400480D3F - SPD series400kA480V 3PHSTD+CntrTop
$34,243.00
- Brand
- Eaton
- SKU:
- SPD400480D3F
- Availability:
- In Stock
Eaton, SPD, 400KA, STD W/COUNTER PKG., TOP TERMINALS, Standard feature package and surge counter, 480V delta (3W+G), 400 kA per phase, panel boards (PRL-C), Internal integrated
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD400480D3F
UPC
786679198353
Product Length/Depth
12 in
Product Height
6 in
Product Width
12 in
Product Weight
13.5 lb
Certifications
UL 1449
UL 1283
UL Listed
UL 1283
UL Listed
Product specifications
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Interrupt rating
200 kAIC
Surge current
400 kA per phase
Mounting Method
Internal integrated
Nominal Discharge Current
20 kA
Short-circuit rating
200 kA
Accessories
Standard feature package and surge counter
Type
Surge protection device
Operating voltage
640 L-G, 640 L-L
Used with
panelboards (PRL-C)
Frequency rating
50/60 Hz
Operating temperature
-40 to 50 ?C
Voltage rating
480 delta (3W+G)
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SPD400480D3O - SPD series400kA480V 3PHSTD+CntrNEM
$35,016.00
Surge Protection Device, SPD series, 400 kAIC, 480V delta (3W+G), Standard feature package and surge counter, NEMA 4 with internal disconnect enclosure, External side mount, 640 L-G, 640 L-L...
Eaton
Eaton SPD400480D3K - SPD series400kA480V 3PHSTD+CntrNEM
$33,103.00
Surge Protection Device, SPD series, 400 kAIC, 480V delta (3W+G), Standard feature package and surge counter, NEMA 1 enclosure, External side mount, 640 L-G, 640 L-L operating voltage ...
Eaton
Eaton SPD400480D3H - SPD series400kA480V 3PHSTD+CntrLft
$34,243.00
Eaton, SPD, 400KA, STD W/COUNTER PKG., LEFT TERMINALS, Standard feature package and surge counter, 480V delta (3W+G), 400 kA per phase, panel boards (PRL-C), Internal integrated ...
Eaton

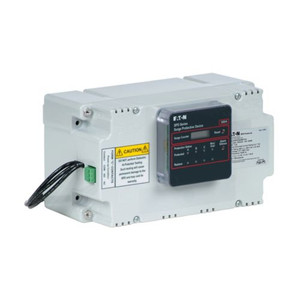

Eaton SPD400480D3B - SPD series400kA480V 3PHSTD+CntrSwi
