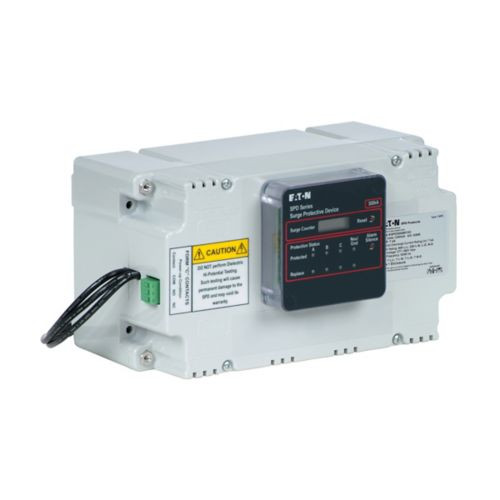

Eaton SPD400480Y1J-ND - SPD series400kA277/480VBasicMCCNo
Write a Review
Write a Review
Eaton
Eaton SPD400480Y1J-ND - SPD series400kA277/480VBasicMCCNo
MSRP:
Now:
$33,577.00
Was:
(You save
)
- Brand
- Eaton
- SKU:
- SPD400480Y1J-ND
- UPC:
- Availability:
- In Stock
Surge protective device, Replacement model, Basic, 277/480 wye (4W+G), 400 kA per phase, Motor control centers
Surge protective device, Replacement model, Basic, 277/480 wye (4W+G), 400 kA per phase, Motor control centers
General specifications
Product Name
Eaton SPD series surge protection device
Catalog Number
SPD400480Y1J-ND
UPC
786685691206
Product Length/Depth
5.78 in
Product Height
5.4 in
Product Width
9.5 in
Product Weight
7 lb
Warranty
10 years (15 years when registered on www.eaton.com/spd)
Compliances
NFPA Standard 780
Certifications
UL 96A
UL Listed
UL Listed
Product specifications
Short-circuit rating
200 kA
Special features
Meets or exceeds the requirements specified in IBC ?2006, CBC2007, and UBC?Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
Accessories
Basic feature package
Interrupt rating
200 kAIC
Type
Replacement model
Used with
Motor control centers
Frequency rating
50/60 Hz
Model
Basic
Operating temperature
-40 to 50 ?C
Surge current
400 kA per phase
Voltage rating
277/480 wye (4W+G)
Nominal Discharge Current
20 kA
