Eaton SPM200480Y3R - SPD series200 kA277/480VSTD+Cntr1N
Write a Review
Write a Review
Eaton
Eaton SPM200480Y3R - SPD series200 kA277/480VSTD+Cntr1N
$22,726.00
- Brand
- Eaton
- SKU:
- SPM200480Y3R
- Condition:
- New

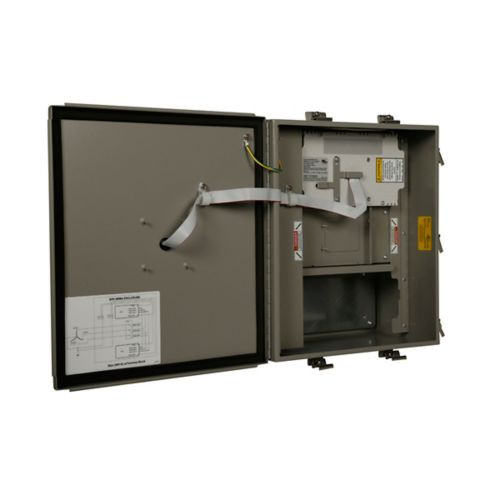

Surge Protective Device, Max series, Single module, 200 kA per phase, 277/480 Wye (4W+G), Standard with surge counter, NEMA 4 with internal circuit breaker
General specifications
Product Name
Eaton SPD MAX series surge protection device
Catalog Number
SPM200480Y3R
UPC
786685917085
Product Length/Depth
9.3 in
Product Height
17.5 in
Product Width
14.91 in
Product Weight
50 lb
Warranty
15 years from the date of delivery (20 years when registered on www.eaton.com/spd)
Compliances
RoHS Compliant
Certifications
CSA Electrical Notice NO. 516 Edition 1
UL 1449
UL 1283
CSA Std. C22.2 No. 8-M1986
UL 1449
UL 1283
CSA Std. C22.2 No. 8-M1986
Electrical properties
Voltage rating
277/480 Wye (4W+G)
Physical properties
Enclosure
NEMA 4 with internal circuit breaker
Type
Max series
Special features
Standard with surge counter
