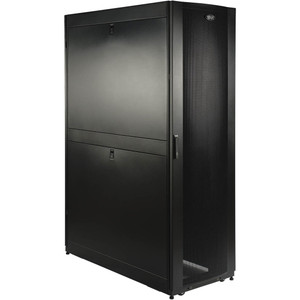

Eaton SR45UB - SR45UB

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

• 45U SmartRack Premium Enclosure (Includes Doors and Side Panels)
• 4 x Side Panels
• 4 x Side Panel Locks
• 50 x M6 Screws
• 50 x M6 Cage Nuts
• 50 x M6 Washers
• 2 x Door and Side Panel Keys
• Owner's Manual
• Stabilizer Plate
• Mounting Hardware Kit
• Baying Hardware Kit

• UL60950 Approval
• EIA-310-E Certification
• Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters
• Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient
• Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
• Compact design allows the enclosure to roll through standard height commercial doorways
• Open bottom for cable access
• Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
• Pre-installed casters and leveling feet
• Massive front to rear ventilation capacity
• Standard 24" width for optimizing floor space
• 4 Interior vertical posts with unthreaded square hole openings
• Top - 4 grommetted holes for cable entry/exit
• Back - 3-in grommetted hole in the panel below the door
• Heavy-duty casters provide stable rolling base for setup or relocation
• Levelers to maintain stability on uneven floors
• Quick release side panels for expansion or maintenance
