Eaton SU2200XLCD - SU2200XLCD
Write a Review
Write a Review
Eaton
Eaton SU2200XLCD - SU2200XLCD
$2,383.00
- Brand
- Eaton
- SKU:
- SU2200XLCD
- Condition:
- New
Eaton SU2200XLCD - SU2200XLCD
Trionics Distributor of Tripp Lite By Eaton,
MPN: SU2200XLCD
Tech Specs
Specifications
Manufacturer Part Number | SU2200XLCD |
Brand Name | Tripp Lite |
Product Line | SmartOnline |

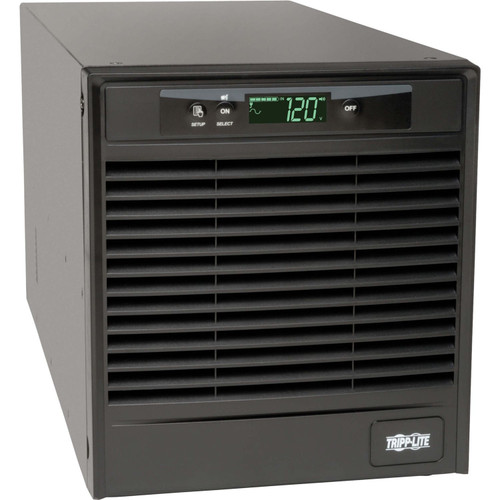

Product Name | SmartOnline SU2200XLCD 2200VA Tower UPS |
Marketing Information | Ideal for Protection of Mission-Critical EquipmentThe SU2200XLCD provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring a 2200VA/1800W capacity, 7 AC outlets (6 5-15/20R, 1 L5-20R), a 10-ft. cord with 5-20P plug, USB/DB9 ports and a slot for an optional network management card option, the SU2200XLCD offers a complete power protection solution for medium- to large-size servers, storage devices, telecom systems and other mission-critical equipment. True On-Line Operation with Pure Sine Wave Output and Zero Transfer TimeThe SU2200XLCD provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Zero transfer time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive effects of blackouts and severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types. Individually Controllable OutletsThe SU2200XLCD includes 2 load banks of 3 outlets each that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment. Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU2200XLCD features a large internal battery set that provides 13 minutes of battery support for a half load (900 watts) and 4.5 minutes for a full load (1800 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. Intelligent battery management system extends battery life. For mission-critical applications demanding continuous uptime, the fully scalable SU2200XLCD can provide expandable runtime with optional external battery packs BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. High Power Factor and Highly Efficient Operation Reduces BTU OutputThe SU2200XLCD features a high 0.82 power factor and an optional, highly efficient economy mode setting that can significantly reduce a facility's energy costs. In economy mode, the UPS operates with 97% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity. AC Line and Tel/Ethernet Surge SuppressionA sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SU2200XLCD features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone or network connection (cable not included). |
Product Type | Double Conversion Online UPS |
Technical Information
Plug/Connector Type | NEMA 5-20P |
Receptacle Type |
|
Receptacle Detail |
|
Bypass Switch | Automatic |
Emergency Power OFF | Yes |
Transfer Time | 0 ns |
Power Description
Load Capacity | 2200 VA/1800 W |
Input Voltage |
|
Output Voltage |
|
Management
Network Management | SNMP Manageable |
Interfaces/Ports
Serial Port | Yes |
USB | Yes |
Battery Information
Backup/Run Time (Full Load) | 4.50 Minute |
Backup/Run Time (Half Load) | 13 Minute |
Typical Battery Recharge Time | 3 Hour |
Hot Swappable | Yes |
Physical Characteristics
Height | 10.2" |
Width | 9" |
Depth | 19.5" |
Form Factor | Tower |
Weight (Approximate) | 52.90 lb |
Miscellaneous
Package Contents |
|
Certifications & Standards |
|
Software Included | PowerAlert Software |
Country of Origin | China |
Warranty
Limited Warranty | 2 Year |
