Eaton SUPER6OMNIB - SUPER6OMNI B
Write a Review
Write a Review
Eaton
Eaton SUPER6OMNIB - SUPER6OMNI B
$44.00
- Brand
- Eaton
- SKU:
- SUPER6OMNIB
- Condition:
- New

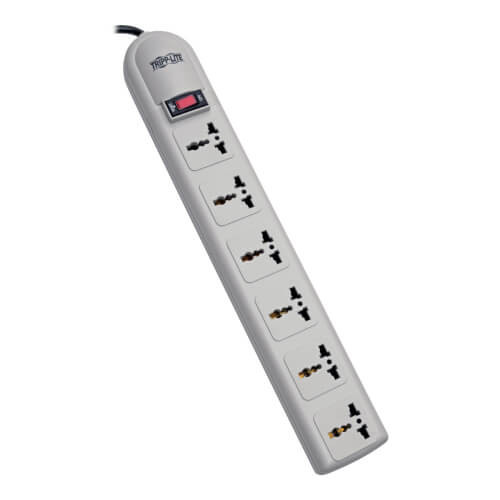

The Protect It!? SUPER6OMNI B offers economical AC surge suppression for full protection of 220-250V workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. The SUPER6OMNI B offers six universal outlets and a 1.8-meter AC line cord with a British plug. AC suppression rated at 750 joules shields equipment from surges and line noise. Internal shutters also offer additional protection. Lighted on/off switch with integrated circuit breaker provides power control over connected equipment. Right-angle outlets keep connected cords from blocking adjacent outlets. Attractive light gray high-impact housing.
- Protect It!? SUPER6OMNI B offers economical AC surge suppression
- 750 joules AC surge suppression shields equipment from surges and line noise
- 6 universal outlets protect computers and peripherals
- Internal shutters provide additional safety
- 1.8 m AC line cord with British plug
- Built-in power switch and 10 amp circuit breaker offers power control and overload protection over all outlets
- Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition
- Attractive light gray high-impact housing with keyhole mounting tabs allow versatile placement options
- Right-angle outlets keep connected cords from blocking adjacent outlets
- SUPER6OMNI B AC surge suppressor
- Instruction manual and warranty information
OVERVIEW
| UPC Code | 037332121158 |
INPUT
| Nominal Input Voltage(s) Supported | 230V AC |
| Recommended Electrical Service | 230V (220-250V) |
| Voltage Compatibility (VAC) | 220-250 |
| Maximum Surge Amps | 13500 |
| Input Plug Type | British |
| Input Cord Details | VDE H05VV-F 1.0mm2 |
| Right-Angle Plug | No |
| Input Cord Length (m) | 1.83 |
OUTPUT
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (6) Universal outlets |
| Circuit Breaker (amps) | 10 |
| Overload Protection | 10A resettable illuminated combo switch/circuit breaker |
| Outlet Orientation | right-angled |
USER INTERFACE, ALERTS & CONTROLS
| Switches | Two position power switch |
SURGE / NOISE SUPPRESSION
| AC Suppression Joule Rating | 750 |
| AC Suppression Response Time | < 1 ns |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
DATALINE SURGE SUPPRESSION
| Network (Ethernet) Protection | No |
PHYSICAL
| Material of Construction | Plastic |
| Power Cord Color | Black |
| Housing Color | Light Gray |
| Mounting Holes or Slots | Yes |
| Slot or Hole Mount Measurement (Center to Center) | 219.5 mm |
| Outlets Measurement (Center to Center) | 51mm |
| Receptacle Color | Gray |
| Shipping Dimensions (hwd / cm) | 5.33 x 11.18 x 42.67 |
| Shipping Weight (kg) | 0.64 |
| Unit Dimensions (hwd / cm) | 39.4 x 6.4 x 3.2 |
| Unit Weight (kg) | 0.45 |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton SUPER6OMNID - SUPER6OMNI D
$44.00
The Protect It!? SUPER6OMNI D offers economical AC surge suppression for full protection of 220-250V workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge...
Eaton
Eaton SPD160240H1C - SPD series160kA240V HLBasicPanel B
$9,043.00
SPD, For switchboard, busways and panel boards (PRL1a, 2a, 3a, 3E, 4), 160 kAIC, 240V high-leg delta (4W+G) on B phase, Basic feature package, Internal integrated mount, 150 L-N, 150 L-G, 150 N-G,...
Eaton
Eaton SPD160240H1A - SPD series160kA240V HLBasicPanel B
$9,043.00
SPD, For direct bus mounted panel boards (PRL1a, 2a, 3a, 3E), 160 kAIC, 240V high-leg delta (4W+G) on B phase, Basic feature package, Internal integrated mount, 150 L-N, 150 L-G, 150 N-G, 300 L-L...
Eaton
Eaton SPD120240H1C - SPD series120kA240V HLBasicPanel B
$7,447.00
SPD, For switchboard, busways and panel boards (PRL1a, 2a, 3a, 3E, 4), 120 kAIC, 240V high-leg delta (4W+G) on B phase, Basic feature package, Internal integrated mount, 150 L-N, 150 L-G, 150 N-G,...
Eaton

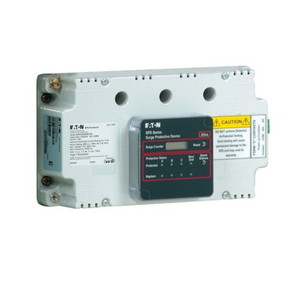

Eaton SPD200240H1C - SPD series200kA240V HLBasicPanel B
