Eaton SV60KM3P3B - SV60KM3P3B

Eaton SV60KM3P3B - SV60KM3P3B

Write a Review

$55,409.40

Brand: Eaton
SKU:: SV60KM3P3B
UPC:
Condition:: New

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SV60KM3P3B
Manufacturer Website Address	http://www.tripplite.com
Brand Name	Tripp Lite
Product Line	SmartOnline
Product Series	SV
Product Model	SV60KM3P3B

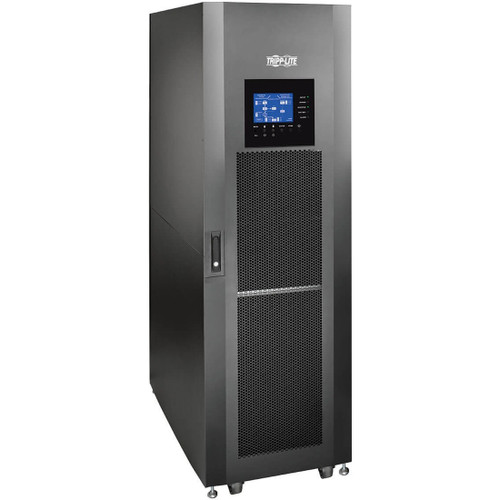

Product Name	SmartOnline SV60KM3P3B 60kVA Tower UPS
Marketing Information	The SV60KM3P3B SmartOnline?SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV60KM3P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), three 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module and one SVBM internal battery module. External ?20VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hardwired
Receptacle Type	Hardwired
Phase	Three Phase

Power Description

Load Capacity	60 kVA
Input Voltage	120 V AC 230 V AC
Output Voltage	120 V AC 230 V AC
Waveform Type	Pure Sine Wave

Management

Network Management

SNMP Manageable
Telnet
SSH

Battery Information

Backup/Run Time (Full Load)	3.90 Minute
Backup/Run Time (Half Load)	8 Minute

Physical Characteristics

Form Factor	Tower
Height	79.1"
Width	23.6"
Depth	43.3"
Weight (Approximate)	1520.99 lb

Miscellaneous

Package Contents	SmartOnline SV60KM3P3B 60kVA Tower UPS Pre-installed WEBCARDLX Network Interface 3 x SV20PM 20kVA Power Modules 3 x SVBM Battery Modules Owner's Manual DB9 Cabling
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	China

Warranty

Limited Warranty

1 Year
