Eaton SV80KM4P4B - SV80KM4P4B
Write a Review
Eaton
Eaton SV80KM4P4B - SV80KM4P4B
- Brand
- Eaton
- SKU:
- SV80KM4P4B
- Condition:
- New
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | SV80KM4P4B |
Manufacturer Website Address | http://www.tripplite.com |
Brand Name | Tripp Lite |
Product Line | SmartOnline |
Product Series | SV |
Product Model | SV80KM4P4B |

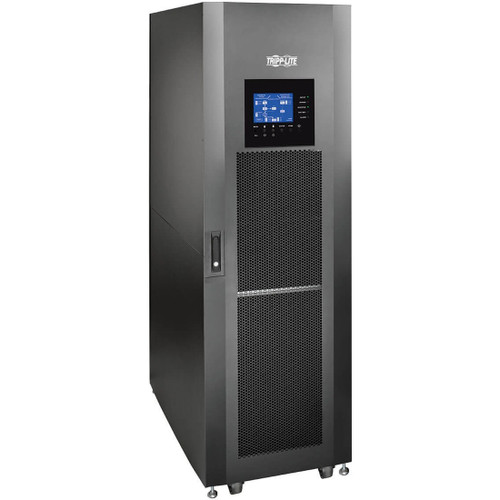

Product Name | SmartOnline SV80KM4P4B 80kVA Tower UPS |
Marketing Information | The SV80KM4P4B SmartOnline?SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV80KM4P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), four 20kVA SV20PM power modules and four SVBM battery modules. It comes fully configured for 80kVA total capacity or 60kVA with enhanced N+1 protection. External ?20VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. |
Product Type | Double Conversion Online UPS |
Plug/Connector Type | Hardwired |
Receptacle Type | Hardwired |
Phase | Three Phase |
Load Capacity | 80 kVA |
Input Voltage |
|
Output Voltage |
|
Waveform Type | Pure Sine Wave |
Network Management |
|
Backup/Run Time (Full Load) | 4 Minute |
Backup/Run Time (Half Load) | 8.50 Minute |
Form Factor | Tower |
Height | 79.1" |
Width | 23.6" |
Depth | 43.3" |
Weight (Approximate) | 1826.99 lb |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | China |
Limited Warranty | 1 Year |
