Eaton U338-06N - USB 3.0 SATA/IDE ADAPTER
- Brand
- Eaton
- SKU:
- U338-06N
- Availability:
- Within 2 Days Shipping
The U338-06N USB 3.0 SuperSpeed to SATA/IDE Adapter connects a 2.5-, 3.5- or 5.25-inch SATA or IDE hard drive to an available USB port on your laptop or computer. This lets you back up important data, retrieve data from an old hard drive, or store information on an external drive that you can take with you to another computer.
This adapter with built-in USB cable supports USB 3.0 data transfer rates up to 5 Gbps. Perfect for storing and sharing large files, such as music and video files, the U338-06N is compatible with SATA and IDE drives up to 4 TB. It features 40- and 44-pin IDE ports, as well as 7-pin SATA data and 15-pin SATA power (via adapter cable) connectors. Necessary SATA and Molex cables are included.
LEDs indicate a successful connection. The U338-06N accepts SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives, as well as USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds. It supports USB Mass Storage Class Bulk-Only Transport. No software or drivers are required. Compatible with all USB-enabled operating systems.
- Recommended for backing up, retrieving and storing large data files
- LEDs indicate successful connection
- Built-in USB 3.0 cable supports data transfer rates up to 5 Gbps
- Backward compatible with previous USB generations
Compatible with 2.5 in., 3.5 in. and 5.25 in. SATA and IDE Drives Up to 4 TB
- Accepts SATA III, SATA II and SATA I drives
- Features 40-pin and 44-pin IDE connectors and 7-pin SATA data and 15-pin SATA power (via adapter cable) connectors
- Supports USB Mass Storage Class Bulk-Only Transport
Easy to Use
- Plug-and-play?o software or drivers needed
- Compatible with all USB-enabled operating systems
- SATA and Molex cables included

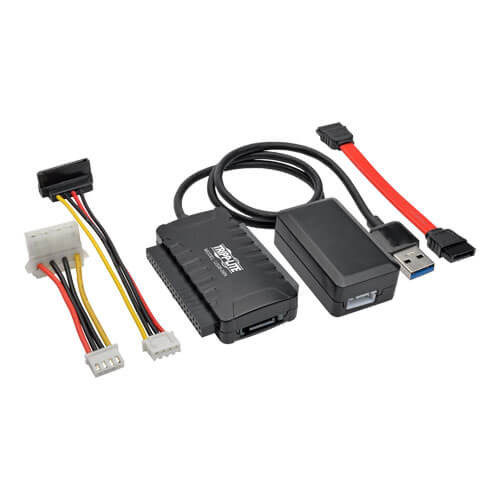

- U338-06N USB 3.0 SuperSpeed to SATA/IDE Adapter
- 7-pin SATA data cable
- 15-pin SATA power cable
- 4-pin Molex power cable
- External power supply (Input: 100?40V, 50/60 Hz, 0.6A; Output: 12V, 2A)
- Power supply adapter
- Owner? manual
OVERVIEW
UPC Code | 037332199744 |
Technology | SATA/eSATA |
INPUT
AC Power Adapter Plug(s) | NEMA 1-15P North America |
AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.6A |
AC Power Adapter Output Specs (V / A) | 12V / 2A |
AC Power Adapter Cord Length (ft.) | 4.9 |
AC Power Adapter Cord Length (m) | 1.5 |
Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
Product Length (in.) | 21.6 |
POWER
Power Source Type | AC Adapter |
AC Adapter | Input: 100-240V, 50/60Hz, 0.6A; Output: 12V, 2A |
DC Barrel Plug | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
Power Consumption (Watts) | 24.00 |
USER INTERFACE, ALERTS & CONTROLS
LED Indicators | Blue (Read, Write, Power) |
PHYSICAL
Color | Black |
Material of Construction | ABS |
Cable Jacket Color | Black |
Cable Jacket Rating | VW-1 |
Shipping Dimensions (hwd / cm) | 4.83 x 13.21 x 17.02 |
Shipping Weight (kg) | 0.27 |
Unit Dimensions (hwd / cm) | 1.4 x 6.3 x 4.2 |
Unit Packaging Type | Box |
Unit Weight (kg) | 0.04 |
ENVIRONMENTAL
Operating Temperature Range | 50? to 122?F (10? to 50?C) |
Storage Temperature Range | 32? to 149?F (0? to 65?C) |
Relative Humidity | 10% to 80% RH, Non-Condensing |
BTUs | 81.9 BTU/Hr |
CONNECTIONS
Number of Ports | 3 |
Side A - Connector 1 | USB 3.0 A (MALE) |
Side B - Connector 1 | 7 PIN SATA (MALE) |
Side B - Connector 2 | 40 POS. SOCKET (FEMALE) |
Side B - Connector 3 | 44 Header IDC (Female) |
Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
Driver Required | No |
STANDARDS & COMPLIANCE
External Power Supply Certifications | FCC; UL; cUL; RoHS |
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
