Eaton U420-C03-G2-5A - 3FT USB-C 5A PDCHG USB-IF CABL
$29.26
- Brand
- Eaton
- SKU:
- U420-C03-G2-5A
- Availability:
- Within 2 Days Shipping

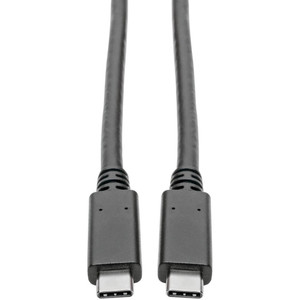

USB-C to USB-C Cable Connects 2 USB-C Devices, Including MacBooks and Smartphones
This three-foot USB Type-C to Type-C cable allows you to connect one USB-C device to another. For instance, a laptop to a docking station, your smartphone to a wall charger, or a hard drive or flash drive to a computer or tablet. The USB-C to C cable is compatible with any device with a USB-C or Thunderbolt 3 port, including MacBooks, Ultrabooks and Chromebooks.
Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
The PD Charging cable supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. It also provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices. The USB Type-C to USB Type-C cable is backward compatible with previous USB generations, allowing you to use it with older equipment.
Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.
USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance
This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U420-C03-G2-5A meets the industry? highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.
- U420-C03-G2-5A USB-C to USB-C Cable, USB-IF, M/M, 3 ft.
OVERVIEW
UPC Code | 037332214997 |
Technology | Thunderbolt; USB 3.x |
Cable Type | Passive |
PHYSICAL
Material of Construction | PVC |
Cable Jacket Color | Black |
Cable Jacket Rating | VW-1 |
Cable Outer Diameter (OD) | 5.2 mm |
Cable Length (m) | 0.91 |
Shipping Dimensions (hwd / cm) | 22.86 x 17.78 x 1.27 |
Shipping Weight (kg) | 0.03 |
Unit Packaging Type | Polybag |
ENVIRONMENTAL
Operating Temperature Range | 14? to 140?F (-10? to 60?C) |
Storage Temperature Range | -4? to 158?F (-20? to 70?C) |
Relative Humidity | 10% to 85% RH, Non-Condensing |
CONNECTIONS
Side A - Connector 1 | USB C (MALE) |
Side B - Connector 1 | USB C (MALE) |
Connector Plating | Nickel |
Contact Plating | Gold |
Connector Style | Straight |
FEATURES & SPECIFICATIONS
USB Specification | USB 3.1 Gen 2 (up to 10 Gbps) |
STANDARDS & COMPLIANCE
Product Certifications | USB-IF |
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
