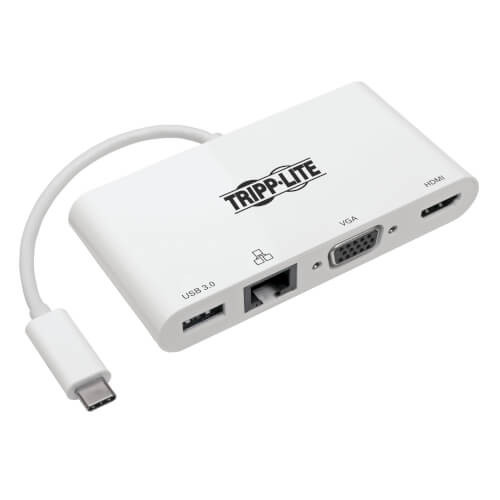

Eaton U444-06N-HV4GU - WHT USBC-HDMI/VGA ADPTR M/F
$82.02
- Brand
- Eaton
- SKU:
- U444-06N-HV4GU
- Availability:
- Within 2 Days Shipping
USB 3.2 C Adapter Connects an HDMI or VGA Monitor to Your USB-C Device
This USB 3.2 Gen 1 Type-C adapter helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to an HDMI-enabled television, monitor or projector. It? an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K HDMI Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (such as P568-Series, sold separately). The USB to HDMI 4K adapter supports video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with 7.1-channel surround sound. It? backward compatible with 1080p displays, allowing you to use it with older equipment. The VGA port (P502-Series VGA cables sold separately) supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.
USB Port Connects Peripherals and Transfers Data at Fast USB 3.2 Gen 1 Speeds
The USB-A 3.2 Gen 1 port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It transfers data at speeds up to 5 Gbps, which is 10 times faster than USB 2.0. It is backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices. Note: Host must support USB OTG (On-the-Go).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device? USB-C port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB Type-C adapter is specifically designed for the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C port. It requires no software, drivers or external power.
- U444-06N-HV4GU USB-C Multiport Adapter, White
- Owner? manual
OVERVIEW
UPC Code | 037332210470 |
Product Type | Multiport Adapter |
Technology | Cat5/5e; Cat6; HDMI |
Host Connector | USB C (MALE) |
VIDEO
Video Input | USB C (MALE) |
Video Output | HDMI (FEMALE); VGA |
Number of Monitors Supported | 1 |
Video Ports | HDMI (FEMALE); HD15 (FEMALE) |
Video Ports Details | HDMI 1.4; HDCP 1.4 |
Resolutions Supported | HDMI: 4K 30Hz (3840 x 2160) VGA: 1920 x 1200 60Hz |
Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K) |
Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ |
Extended Mode | Yes |
Extended Mode Details | Extend to another desktop via the following ports: - HDMI: 3840 X 2160 (4K X 2K) @ 30HZ - VGA: 1920 X 1200 (1080P) @ 60HZ |
Mirror Mode | Yes |
Mirror Mode Details | Mirror the image transmitted via the following ports: - HDMI: 3840 X 2160 (4K X 2K) @ 30HZ - VGA: 1920 X 1200 (1080P) @ 60HZ |
HDR Support | No |
3D Video Supported | Yes |
EDID Support | Yes |
AUDIO
Audio Specification | 7.1 channel surround sound via HDMI port |
DATA
Data Ports | USB A (FEMALE) |
Data Ports Details | USB-A - USB 3.2 Gen 1 (5 Gbps) |
NETWORK
Network Ports | RJ45 (FEMALE) |
INPUT
Built-In Cable Length (m) | 0.11 |
Built-In Cable Length (cm) | 11 |
Bus Powered | Yes |
Product Length (in.) | 6 |
Product Length (cm.) | 15.24 |
Product Length (ft.) | 0.5 |
Product Length (m.) | 0.15 |
BATTERY
Battery Charging (5V/1.5A Port) | No |
POWER
Power Consumption (Watts) | 2.8 |
USB Power Delivery (PD) Charging Support | No |
USER INTERFACE, ALERTS & CONTROLS
LED Indicators | Green (Connection), Orange (Activity) |
PHYSICAL
Color | White |
Material of Construction | PVC, ABS |
Cable Jacket Rating | VW-1 |
Shipping Dimensions (hwd / cm) | 2.31 x 13.97 x 9.91 |
Shipping Weight (kg) | 0.05 |
Unit Dimensions (hwd / mm) | 15.5 x 103 x 52 |
Unit Packaging Type | Box |
Unit Weight (kg) | 0.04 |
ENVIRONMENTAL
Operating Temperature Range | 32? to 113?F (0? to 45?C) |
Storage Temperature Range | 14? to 158?F (-10? to 70?C) |
BTUs | 9.6 BTU/Hr |
Operating Humidity Range | 10% to 85% RH, Non-Condensing |
Storage Humidity Range | 5% to 90% RH, Non-Condensing |
COMMUNICATIONS
Network Compatibility | 1 Gbps (Gigabit) |
IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
CONNECTIONS
Number of Ports | 4 |
Side A - Connector 1 | USB C (MALE) |
Side B - Connector 1 | HDMI (FEMALE) |
Side B - Connector 2 | USB 3.0 A (FEMALE) |
Side B - Connector 3 | RJ45 (FEMALE) |
Side B - Connector 4 | HD15 (FEMALE) |
Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
Multi-Resolution Support | No |
UASP Support | No |
Auto MDIX Support | Yes |
Full Duplex Support | Yes |
Suspend Mode Support | Yes |
Remote Wakeup Support | Yes |
HDCP Specification | 1.4 |
Driver Required | No |
Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
STANDARDS & COMPLIANCE
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
