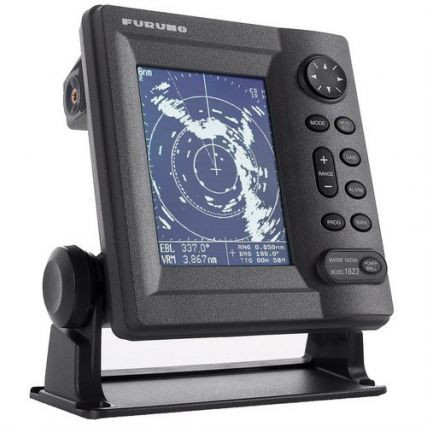

Furuno 1623 1623 Lcd Radar

Furuno 1623 Lcd Radar

Small in size, the 1623 is big on power, clarity and advanced radar features. The slim-line monochrome LCD display and lightweight radome antenna make it ideal for power or sail boats as small as 17 feet.

This 2.2kW radar has a 16 nautical mile range, yet will zoom down to 1/8 nautical mile for tight navigation in harbors and inlets. The 1623 radar lets you readily identify objects, thanks to a high definition 6" Silver Bright LCD screen that clearly separates targets. Plus, the four-tone target display lets you easily differentiate between stronger and weaker echoes, helping to alert you of any danger.

Includes 10M Standard Signal Cable

Standard Features

• Waterproof, 6 Inch Silver Bright Monochrome LCD Display

• 13 User Selectable Range Scales from 1/8 to 16 N.M.

• Ergonomic design with predictable menu

• Display Resolution of 240(H) X 320(V) Dots

• Targets Displayed in up to 4 Levels of Gray Tones

• 2.2 Kilowatt Transmitter Unit

• New Tri-speed 15" radome antenna, increases RPM at short ranges for better target accuracy

• 3 Transmitter Pulse lengths and Repetition Rates

• Linear Receiver with 10 dB Noise Figure

• Automatic Receiver Tuning

• Automatic or Manual Sea-Clutter (STC) Adjustment

• Automatic or Manual Receiver Gain Adjustment

• Sector Blanking

• Rain Clutter (FTC) Control

• Echo Stretch and Interference Rejection Modes

• Watchman Mode to control the Radar system for Vessel Safety

• Reverse Video Display (White Targets and Marks on a Black Background)

• Full Screen Navigation Data Display in the Standby Mode*

• Omni Pad Control for rapid Cursor and Menu Operation

• Picture Off-Center Shift

• Electronic Bearing Line and Variable Range Marker

• Target or Echo Trails with Selectable Time Intervals

• Waypoint Lollipop On-Screen to aid in Vessel Navigation*

• Adjustable Duplex (In or Out) Radar Guard Zone Alarm

• TLL (Target Lat/Lon) output for use with plotter (must accept TLL sentence info)*

• Time offset adjustment

• [PROG] key provides menu shortcuts

• User programmable Nav Data Screens

• Ability to connect BBWGPS GPS/WAAS receiver

• Wind indication with appropriate sensor input

Shipping Information

• 24 lbs., 1 Carton

Power Requirements

• 12 or 24 VDC Only, 36 Watts

• Approximately 8 Watts, in Standby/Watchman Mode

Notes

• * Appropriate Nav Data Input Required.

Manufacturer Part Number: 1623
