Furuno DT-800MSF Smart Sensor Dt-800msf - Thru-Hull Transducer
Write a Review
Write a Review
Furuno
Furuno DT-800MSF Smart Sensor Dt-800msf - Thru-Hull Transducer
$389.34
- Brand
- Furuno
- SKU:
- DT-800MSF
- Condition:
- New
- Availability:
- Within 2 Days Shipping
Description

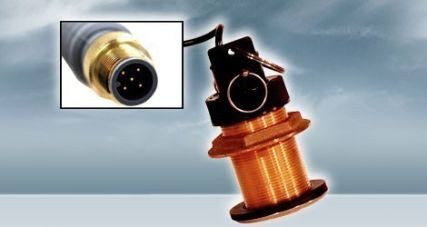

Furuno Smart Sensor Dt-800msf - Thru-Hull Transducer
Furuno DT-800MSF - Airmar B617V Housing Style TransducerDesigned with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')
Standard Features:
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2C (±0.1F) accuracy
Weight: 1.5kg (3.4lb)
Acoustic Window: Urethane
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 180M (590)
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6M
NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile P65Warnings.ca.gov.
Manufacturer Part Number: DT-800MSF
