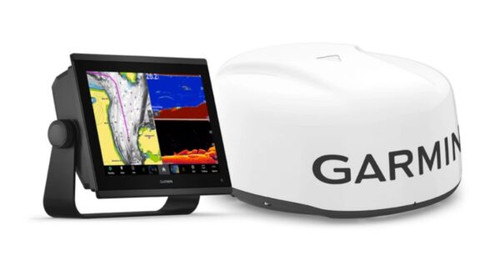

Garmin 010-02367-53 GPSMAP 1243xsv with GMR 18 HD3

Write a Review

Garmin

Garmin 010-02367-53 GPSMAP 1243xsv with GMR 18 HD3

Rating Required

Name Required

Email Required

Review Subject Required

Comments Required

$4,599.99

Brand

Garmin

SKU:

010-02367-53

UPC:

7.53759E+11

Availability:

In Stock

Description
0 Reviews

Garmin GPSMAP® 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with Garmin Navionics+ and GMR18HD3 radar Dome

Model: 010-02367-53

Easily integrate with more engines.
Connect to compatible third-party devices with OneHelm digital switching.
Easily build your marine system using the best of network connectivity.
Navigate any waters with preloaded mapping and coastal charts.
See below your boat with built-in sonar capabilities.
Manage your marine experience from nearly anywhere.

With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

Navigate any waters with preloaded Garmin Navionics+ charts and mapping

Specifications

General
PHYSICAL DIMENSIONS	12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
DISPLAY SIZE	10.3? x 6.4?; 12.1? diagonal
DISPLAY RESOLUTION	1280 x 800 pixels
DISPLAY TYPE	WXGA display
WEIGHT	6.6 lbs. (3.0 kg)
WATER RATING	IPX7
POLARIZED SUPPORT	Yes
POWER CONSUMPTION	Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A
ANTENNA	Internal or external over NMEA 2000
MOUNTING OPTIONS	Bail, flush or flat
RECEIVER	10 Hz high-sensitivity
GARMIN MARINE NETWORK PORTS	2
TRANSMIT POWER	1 kW traditional; 1 kW CHIRP
Maps & Memory
PRELOADED MAPS	Garmin Navionics+
ACCEPTS DATA CARDS	2 microSD cards (back of unit)
WAYPOINTS	5,000
TRACK LOG	50,000 points; 50 saved tracks
ROUTES	100
Outdoor Recreation
TIDE TABLES	Yes
Chartplotter Features
GARMIN RADAR COMPATIBLE	Yes
GARMIN SONAR COMPATIBLE	Yes (built-in)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)	Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)	Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)	Yes
SUPPORTS FUSION-LINK COMPATIBLE RADIOS	Yes
GSD BLACK BOX SONAR SUPPORT	Yes
GCV BLACK BOX SONAR SUPPORT	Yes
ACTIVECAPTAIN COMPATIBLE	Yes
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE	Yes
WIRELESS REMOTE COMPATIBLE	Yes
SAILING FEATURES	Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE	Yes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE	Yes
FREQUENCIES SUPPORTED	Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer)
CHIRP SONAR TECHNOLOGY	Yes (Built-in)
CLEARVü	Yes with CHIRP (built-in)
SIDEVü	Yes with CHIRP (built-in)
MAXIMUM DEPTH	5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	Yes
WATER TEMPERATURE LOG AND GRAPH	Yes
SONAR RECORDING	Yes
SONAR HISTORY REWIND	Yes
Connections
NMEA 2000® COMPATIBLE	Yes
TRANSDUCER PIN NUMBERS	12-pin (orange)
NMEA 0183 INPUT PORTS	1
NMEA 0183 OUTPUT PORTS	1
VIDEO INPUT PORTS	1 BNC
VIDEO OUTPUT PORTS	1 HDMI
WIRELESS CONNECTIVITY	Yes
J1939 COMPATIBLE	Yes

Whats in the Box:

GPSMAP 1243xsv chartplotter
microSD card preinstalled
Power cable
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
8-pin transducer to 12-pin sounder adapter cable
GMR 18 HD3 radome
Mounting hardware kit
Power cable (15 m)
Network cable (15 m)
Installation instructions

Weight	39.500000 lbs
