Garmin 010-01719-00 GMR 18 HD+ Dome Radar [CWR-63433]

GMR 18 HD+ Dome Radar w/ 15m cable

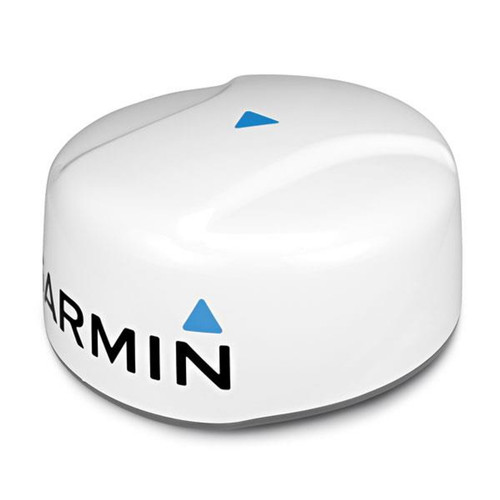

The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; however, for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).

Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true color resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and its easy to install and start using.

Features:

• Streamlined 18-inch 4kW dome radar
• Deliver 4kW of transmit power and clear echo definition at all ranges
• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Dynamic Sea Filter automatically adjusts gain to changing sea conditions
• Overlays the radar image on the chartplotter map page (autopilot or heading sensor is recommended for best results)
• MARPA target tracking when combined with a multifunction display and heading sensor (sold separately)
• Beam angles: 5.0 horizontal, 25 vertical
• Max range: 36 nautical miles
• Minimum range: 20 meters
• Rotation speed: 24 revolutions/minute
• No complex user settings; easy to install and start using

Comes with:

• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template

Specifications:

• Array Size (Inches): 18"
• Power - Output: 4kW
• Range - Max (Miles): 36nm
• Box Dimensions: 17"H x 23"W x 23"L WT: 30.5 lbs
• UPC: 753759168544
