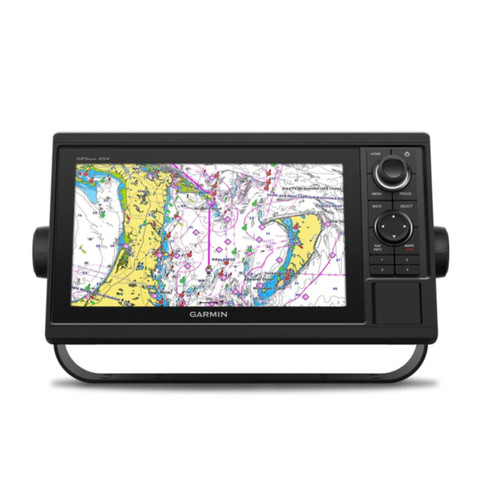

Garmin 010-01740-60 GPSMAP 1042xsv Combo GPS/Fishfinder GN+ w/GT52-TM [CWR-97049]
- Brand
- Garmin
- SKU:
- 010-01740-60
- UPC:
- 753759285210
- Availability:
- In Stock
Garmin GPSMAP® 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada and GT52-TM transducer
Model: 010-01740-60
- Large, bright 10" screen with keypad interface and multifunction control knob
- Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars
- Supports Panoptix and LiveScope sonar products (transducers sold separately)
- Preloaded Garmin Navionics+ coastal charts and inland mapping feature Auto Guidance+ technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, theres support for optional Garmin Navionics Vision+ premium map content.
- Built-in wireless capabilities for Garmin mobile apps
- See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway
- Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors
- Includes Quickdraw Contours map drawing software
- Built-in Garmin SailAssist features include laylines, race features, set and drift, wind data and more
- Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind Wireless 2 transducer, GNX Wind marine instrument and remote controls (sold separately)
Experience an advanced all-in-one solution with our 10" GPSMAP® 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. A GT52-TM transducer is included for Garmin CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. Theres also support for Panoptix and LiveScope sonar products and a wide range of other transducers (sold separately). Preloaded Garmin Navionics+ coastal charts and inland mapping feature Auto Guidance+ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, theres support for optional Garmin Navionics Vision+ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect online network. Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smartphone app for access to the OneChart feature, smart notifications, Garmin Quickdraw Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, theres NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind Wireless 2 transducer, GNX Wind marine instrument and remote controls (sold separately). See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.
Specifications
Performance and Physical | |
Dimensions | 12.5? x 7.3? x 2.7? (318 x 185 x 69 cm) |
Display size | 8.8? x 4.9? (224 x 125 cm) |
Display resolution | 1024 x 600 |
Display type | WSVGA display |
Weight | 4.1lbs |
Water rating | IPX7 |
Antenna | Internal or external over NMEA 2000 |
NMEA 2000® compatible | Yes |
NMEA 0183 compatible | Yes |
SiriusXM Weather & Radio compatible | Yes |
Power consumption | Max power usage at 10 Vdc: 32.4 W Typical current draw at 12 Vdc: 1.9 A Max current draw at 12 Vdc: 2.7 A |
Mounting options | Bail or flush |
Maps and Memory | |
Preloaded maps | Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
Accepts data card | 2 SD cards |
Waypoints | 5,000 |
Routes | 100 |
Track log | 50,000 points; 50 saved tracks |
Chartplotter Features | |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes (with external black box, sold separately) |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Tide tables | Yes |
Garmin Meteor Audio System compatible | Yes |
Supports Fusion Lync compatible marine radios | Yes |
GSD Black Box sonar support | Yes |
GCV Black Box sonar support | Yes |
BlueChart® Mobile (planning) compatible | Yes |
Garmin Helm compatible | Yes |
GRID (Garmin Remote Input Device) compatible | Yes |
Wireless remote compatible | Yes |
Connections | |
NMEA 0183 input ports | 1 |
NMEA 0183 output ports | 1 |
Video input ports | 1 BNC |
Video output ports | None |
Wireless connectivity | Yes |
Garmin Marine Network ports | 2 |
Sonar Features and Specifications | |
CHIRP sonar technology | Yes (Built-in) |
ClearVü | Yes with CHIRP (built-in) |
SideVü | Yes with CHIRP (built-in) |
Dual-frequency (50/200 kHz) sonar capable | Yes |
Dual-beam (77/200 kHz) sonar capable | Yes |
Frequencies supported | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer) |
Transmit power | 1 kW traditional; 1 kW CHIRP |
Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
Bottom lock (shows return from the bottom up) | Yes |
Water temperature log and graph | Yes |
Sonar recording | Yes |
Sonar history rewind | Yes |
Transducer port | 12-pin |
Whats in the Box:
- GPSMAP 1042xsv chartplotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- GT52-TM transducer
Weight | 11.170000 lbs |
---|
