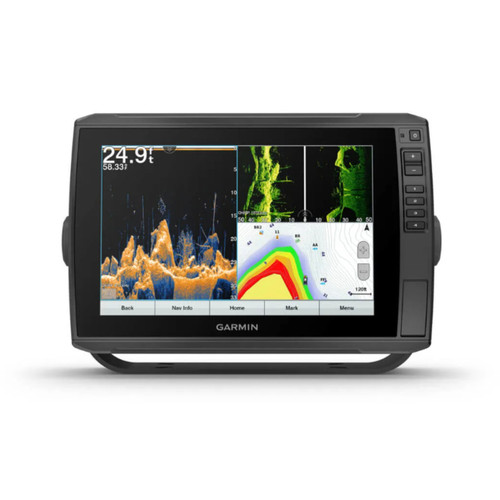

Garmin New OEM ECHOMAP Ultra 106sv, 010-02112-00
Write a Review
Write a Review
Garmin
Garmin New OEM ECHOMAP Ultra 106sv, 010-02112-00
$2,274.99
- Brand
- Garmin
- SKU:
- 010-02112-00
- Availability:
- In Stock
Product Description
Brand new, genuine Garmin ECHOMAP Ultra 106sv. This is a factory original equipment item, not aftermarket.
The sunlight-readable 10 touchscreen combo features preloaded BlueChart® G3 charts and LakeVü G3 maps, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
| General | |
|---|---|
| DIMENSION | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
| TOUCHSCREEN | Yes |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA, IPS |
| WEIGHT | 4.0 lbs (1.8 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
| Maps & Memory | |
|---|---|
| ACCEPTS DATA CARDS | 2 microSD cards |
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
|---|---|
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
| Built-in Maps | |
|---|---|
| BLUECHART (COASTAL) | Yes |
| LAKEVU (INLAND) | Yes |
| TIDE TABLES | Yes |
| Optional Map Support | |
|---|---|
| BLUECHART G3 | Yes |
| BLUECHART G3 VISION | Yes |
| LAKEVÜ G3 | Yes |
| LAKEVÜ G3 ULTRA | Yes |
| GARMIN NAVIONICS+ | Yes |
| GARMIN NAVIONICS VISION+ | Yes |
| TOPO | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| Chartplotter Features | |
|---|---|
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS | Yes |
| ACTIVECAPTAIN® COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features & Specifications | |
|---|---|
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX SONAR | Yes |
| LIVESCOPE | Yes |
| Connections | |
|---|---|
| NMEA 2000® PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 scanning sonar |
| Electrical Features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 2.8 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 22.4W |
- The keyed-assist 10 touchscreen puts fishfinding know-how at your fingertips. See crisp images of structure and fish in stunning detail with optional transducer.
- Navigate confidently with preloaded BlueChart® G3 charts and LakeVü G3 maps.
- Manage your marine experience from nearly anywhere with the ActiveCaptain® app.
- Connect your boat to share data, sonar and charts with your other devices.
- Explore your new favorite spot create maps on the fly, and tailor them to fit your needs.
SKU# 010-02112-00
Items included in this kit:
- ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S.
- Power/data cable
- Tilt mount with quick release cradle
- 8-pin transducer to 12-pin sounder adapter cable
- Flush mount
- Protective cover
- Hardware
- Documentation
Fits:
| Description: |
|---|
| Compact Reactor 40 Hydraulic Autopilot Starter Pack |
| Compact Reactor 40 Hydraulic Autopilot with GHC 20 and Shadow Drive Technology Pack |
| Compact Reactor 40 Hydraulic Autopilot with GHC 20 Instrument Pack |
| Compact Reactor 40 Hydraulic Autopilot with GHC 50 and Shadow Drive Technology Pack |
| Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument Pack |
| Force® Trolling Motor |
| Garmin AIS 300 Blackbox Receiver |
| Garmin AIS 600 Blackbox Transceiver |
| Garmin AIS 800 Blackbox Transceiver |
| GCV 10 Scanning Sonar Module |
| GCV 20 |
| GLS 10 Sonar Module |
| GMI 20 |
| GNX 20 |
| GNX 21 |
| GNX Wireless Sail Pack 43 |
| gWind |
| gWind Race |
| LiveScope System |
| Meteor 300 Audio System |
| Panoptix LiveScope LVS12 Transducer |
| Panoptix PS22-TR |
| Panoptix PS30 |
| Panoptix PS31 |
| Panoptix PS51-TH |
| Panoptix PS60 |
| Reactor 40 Hydraulic Autopilot |
| Reactor 40 Hydraulic Corepack with SmartPump |
| Reactor 40 Hydraulic Corepack with SmartPump v2 |
| Reactor 40 Kicker Autopilot |
| Reactor 40 Kicker Autopilot |
| Reactor 40 Mechanical/Retrofit/Solenoid Corepack |
| Reactor 40 Steer-by-wire Corepack for Viking® VIPER |
| Reactor 40 Steer-by-wire Corepack for Volvo Penta® |
| Reactor 40 Steer-by-wire Corepack for Volvo-Penta® |
| Reactor 40 Steer-by-wire Corepack for Yamaha® Helm Master® |
| Reactor 40 Steer-by-wire Corepack for Yamaha® Helm Master |
| Reactor 40 Steer-by-wire Corepack for Yamaha® Helm Master |
| Reactor 40 Steer-by-wire Standard Corepack |
| VHF 100 Marine Radio |
| VHF 110 Marine Radio |
| VHF 115 Marine Radio |
| VHF 210 AIS Marine Radio |
| VHF 210 Marine Radio |
| VHF 215 Garmin AIS Marine Radio |
| VHF 215 Marine Radio |
| VHF 315 Marine Radio |
