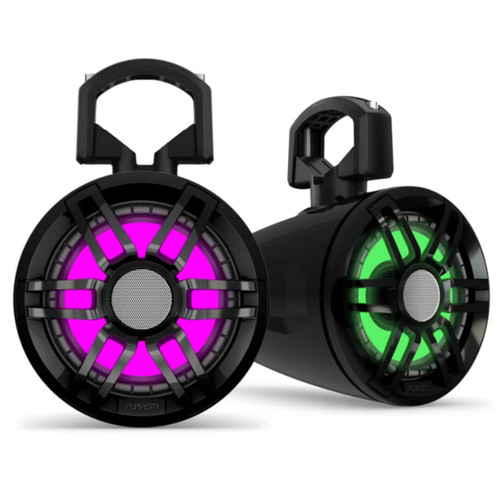

Garmin New OEM Tread® Audio System 6.5 XS-LED Tower Speakers, 010-02646-02
$779.99
- Brand
- Garmin
- SKU:
- 010-02646-02
- UPC:
- 7.53759E+11
- Availability:
- In Stock
Product Description
Brand new, genuine Garmin Tread® Audio System 6.5 XS-LED Tower Speakers. This is a factory original equipment item, not aftermarket.
Compatible Devices
Audio Box | |
---|---|
Weight | 997 g (2.2 lbs) |
Physical Dimensions (LxWxH) | 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165") |
Water and dust rating | IP67 |
Input voltage | 8 to 14.4 Vdc |
Current (max) | 40 A |
Current (muted) | less than 650 mA |
Operating temperature range | -4° F to 158° F (-20° to 70° C) |
Storage temperature range | -40° F to 185° F (-40° to 85° C) |
Compass safe distance | 203 mm (8") |
BLUETOOTH wireless range | up to 10 m (30 ft) |
ANT wireless range | up to 10 m (30 ft) |
Fuse | 15 A mini-blade type |
Peak power (Watts) | Four 200 W per channel |
RMS power (Watts) | Four 100 W RMS at 14.4 Vdc input, 4 ohm |
Warranty | 1 year |
Speakers | |
---|---|
Weight | 2.49 kg (5.5 lbs) |
Physical Dimensions | 177 mm x 233 mm (6.97" x 8.78") |
Water and dust rating | IP67 |
Operating temperature range | 32° - 122° F (0° to 50° C) |
Speaker size | 6.5" |
Peak power (Watts) | 200 W per speaker |
RMS power (Watts) | 50 W |
Sensitivity (1 W/1 m) | 91 db |
Frequency response | 80 Hz - 18kHz |
Nominal impedance | 4 ohms |
Recommended amplifier power (RMS) | 20 - 150 W |
LED lighting | yes (RGB) |
LED supply voltage | 10.8 - 16 Vdc |
LED load current @ 14.4 VDC | 150 mA |
Voice coil diameter | 30 mm (1.18") |
Cone material | polypropylene (PP) cone with cloth surround |
Tweeter type | aluminum dome |
Supported roll bar sizes | 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter |
Warranty | 1 year |
Wiring | 3 m |
- Sold Each
SKU# 010-02646-02
Items included in this kit:
Audio System |
---|
Tread Audio Box with LED controller |
Two 6.5" XS-LED tower speakers with tube mounts |
Wireless remote |
Wiring |
Documentation |
Audio Box only |
---|
Tread Audio Box with LED controller |
Wireless remote |
Wiring harnesses |
Documentation |
Speakers only |
---|
Two 6.5" XS-LED tower speakers with tube mounts |
Documentation |
Audio System plus 2 Speakers |
---|
Tread Audio Box with LED controller |
Four 6.5" XS-LED tower speakers with tube mounts |
Wireless remote |
Wiring |
Documentation |
Audio System plus Subwoofer |
---|
Tread Audio Box with LED controller |
Two 6.5" XS-LED tower speakers with tube mounts |
Fusion® XS series 10" 600-Watt subwoofer with RGB LED lighting (no enclosure) |
Wireless remote |
Wiring (tower speakers only) |
Documentation |
Fits:
Accessories
Product |
---|
Tread® AppTread® App |
Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 25 ft (7.62 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 25 ft (7.62 m) Cable |
Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 50 ft (15.24 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 50 ft (15.24 m) Cable |
Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 328 ft (100 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 328 ft (100 m) Cable |
Fusion® XS Series Accessory Grilles, 6.5" Sports White Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports White Speaker Grilles |
Fusion® XS Series Accessory Grilles, 6.5" Sports Gray Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports Gray Speaker Grilles |
Fusion® XS Series Accessory Grilles, 6.5" Sports Black Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports Black Speaker Grilles |
Fusion® XS Series Accessory Grilles, 6.5" Classic White Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Classic White Speaker Grilles |
Fusion® XS Series Accessory Grilles, 6.5" Classic Black Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Classic Black Speaker Grilles |
Fusion® XS Series Wake Tower Mounting Brackets, 2.5" Pipe Mount BracketFusion® XS Series Wake Tower Mounting Brackets, 2.5" Pipe Mount Bracket |
Fusion® XS Series Wake Tower Mounting Brackets, 2" Pipe Mount BracketFusion® XS Series Wake Tower Mounting Brackets, 2" Pipe Mount Bracket |
Fusion® XS Series Wake Tower Mounting Brackets, Flat Mount BracketFusion® XS Series Wake Tower Mounting Brackets, Flat Mount Bracket |
Product |
---|
Fusion® XS Series Marine Subwoofers |
Tread® |
Tread® - Base Edition |
Tread® - Overland Edition |
Tread® - SxS Edition |
Tread® XL - Baja Chase Edition |
Tread® XL - Baja Race Edition |
Tread® XL - Overland Edition |
