Garmin New OEM Tread® Audio System Audio System with LED Controller, 010-02646-00
Write a Review
Write a Review
Garmin
Garmin New OEM Tread® Audio System Audio System with LED Controller, 010-02646-00
$1,199.99
- Brand
- Garmin
- SKU:
- 010-02646-00
- UPC:
- 753759299309
- Condition:
- New
Product Description
Brand new, genuine Garmin Tread® Audio System Audio System with LED Controller. This is a factory original equipment item, not aftermarket.
SPECS
| Audio Box | |
|---|---|
| Weight | 997 g (2.2 lbs) |
| Physical Dimensions (LxWxH) | 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165") |
| Water and dust rating | IP67 |
| Input voltage | 8 to 14.4 Vdc |
| Current (max) | 40 A |
| Current (muted) | less than 650 mA |
| Operating temperature range | -4° F to 158° F (-20° to 70° C) |
| Storage temperature range | -40° F to 185° F (-40° to 85° C) |
| Compass safe distance | 203 mm (8") |
| BLUETOOTH wireless range | up to 10 m (30 ft) |
| ANT wireless range | up to 10 m (30 ft) |
| Fuse | 15 A mini-blade type |
| Peak power (Watts) | Four 200 W per channel |
| RMS power (Watts) | Four 100 W RMS at 14.4 Vdc input, 4 ohm |
| Warranty | 1 year |
| Speakers | |
|---|---|
| Weight | 2.49 kg (5.5 lbs) |
| Physical Dimensions | 177 mm x 233 mm (6.97" x 8.78") |
| Water and dust rating | IP67 |
| Operating temperature range | 32° - 122° F (0° to 50° C) |
| Speaker size | 6.5" |
| Peak power (Watts) | 200 W per speaker |
| RMS power (Watts) | 50 W |
| Sensitivity (1 W/1 m) | 91 db |
| Frequency response | 80 Hz - 18kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 20 - 150 W |
| LED lighting | yes (RGB) |
| LED supply voltage | 10.8 - 16 Vdc |
| LED load current @ 14.4 VDC | 150 mA |
| Voice coil diameter | 30 mm (1.18") |
| Cone material | polypropylene (PP) cone with cloth surround |
| Tweeter type | aluminum dome |
| Supported roll bar sizes | 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter |
| Warranty | 1 year |
| Wiring | 3 m |
- Sold Each
SKU# 010-02646-00
Items included in this kit:
| Audio System |
|---|
| Tread Audio Box with LED controller |
| Two 6.5" XS-LED tower speakers with tube mounts |
| Wireless remote |
| Wiring |
| Documentation |
| Audio Box only |
|---|
| Tread Audio Box with LED controller |
| Wireless remote |
| Wiring harnesses |
| Documentation |
| Speakers only |
|---|
| Two 6.5" XS-LED tower speakers with tube mounts |
| Documentation |
| Audio System plus 2 Speakers |
|---|
| Tread Audio Box with LED controller |
| Four 6.5" XS-LED tower speakers with tube mounts |
| Wireless remote |
| Wiring |
| Documentation |
| Audio System plus Subwoofer |
|---|
| Tread Audio Box with LED controller |
| Two 6.5" XS-LED tower speakers with tube mounts |
| Fusion® XS series 10" 600-Watt subwoofer with RGB LED lighting (no enclosure) |
| Wireless remote |
| Wiring (tower speakers only) |
| Documentation |
Fits:
Accessories
| Product |
|---|
| Tread® AppTread® App |
| Fusion® Stealth Antenna Fusion® Stealth Antenna |
| Tread® Audio LED CableTread® Audio LED Cable |
| Tread® Audio Speaker CableTread® Audio Speaker Cable |
| Tread® Audio RCA CableTread® Audio RCA Cable |
| Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 25 ft (7.62 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 25 ft (7.62 m) Cable |
| Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 50 ft (15.24 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 50 ft (15.24 m) Cable |
| Fusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 328 ft (100 m) CableFusion® Marine Speaker Cables, 16 AWG (1.3 mm2), 328 ft (100 m) Cable |
| Fusion® XS Series Accessory Grilles, 6.5" Sports White Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports White Speaker Grilles |
| Fusion® XS Series Accessory Grilles, 6.5" Sports Gray Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports Gray Speaker Grilles |
| Fusion® XS Series Accessory Grilles, 6.5" Sports Black Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Sports Black Speaker Grilles |
| Fusion® XS Series Accessory Grilles, 6.5" Classic White Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Classic White Speaker Grilles |
| Fusion® XS Series Accessory Grilles, 6.5" Classic Black Speaker GrillesFusion® XS Series Accessory Grilles, 6.5" Classic Black Speaker Grilles |
| Fusion® XS Series Wake Tower Mounting Brackets, 2.5" Pipe Mount BracketFusion® XS Series Wake Tower Mounting Brackets, 2.5" Pipe Mount Bracket |
| Fusion® XS Series Wake Tower Mounting Brackets, 2" Pipe Mount BracketFusion® XS Series Wake Tower Mounting Brackets, 2" Pipe Mount Bracket |
| Fusion® XS Series Wake Tower Mounting Brackets, Flat Mount BracketFusion® XS Series Wake Tower Mounting Brackets, Flat Mount Bracket |
| Fusion® ARX Wireless Remote, BlackFusion® ARX Wireless Remote, Black |
| Product |
|---|
| Fusion® XS Series Marine Subwoofers |
| Fusion® XS Series Marine Wake Tower Speakers |
| Tread® |
| Tread® - Base Edition |
| Tread® - Overland Edition |
| Tread® - SxS Edition |
| Tread® XL - Baja Chase Edition |
| Tread® XL - Baja Race Edition |
| Tread® XL - Overland Edition |
0 Reviews Hide Reviews Show Reviews
Garmin
Garmin New OEM Tread® Audio System Audio Box with LED Controller, 010-02646-01
$599.99
Product Description Brand new, genuine Garmin Tread® Audio System Audio Box with LED Controller. This is a factory original equipment item, not aftermarket.
Garmin
Garmin New OEM Tread® Audio System 6.5 XS-LED Tower Speakers, 010-02646-02
$599.99
Product Description Brand new, genuine Garmin Tread® Audio System 6.5 XS-LED Tower Speakers. This is a factory original equipment item, not aftermarket.Compatible Devices<
Garmin

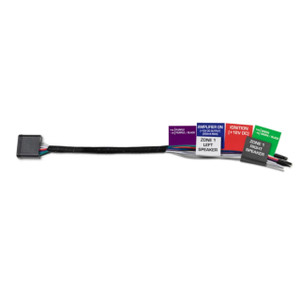

Garmin New OEM Tread® Audio Speaker Cable, 010-13262-00
$9.99
Product Description Brand new, genuine Garmin Tread® Audio Speaker Cable. This is a factory original equipment item, not aftermarket.Use this cable to replace the
Garmin

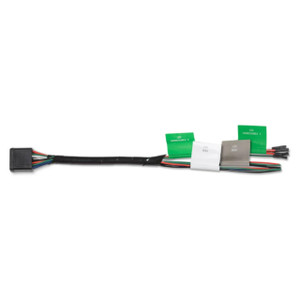

Garmin New OEM Tread® Audio LED Cable, 010-13262-01
