INTELLIAN I3 us system w/14.6 inch reflector, mim switch, dish hd receiver

Contents of the package

Features

Oversized ground

i3 US Sat TV system w/ DISH Network receiver, MFG B4-I3DNSB, 14.6inch dish with dual output LNB, built-in GPS, measures 17inchH x 175inchD. Includes 15M RF, 10M power/data cables, DISH receiver, and control box.

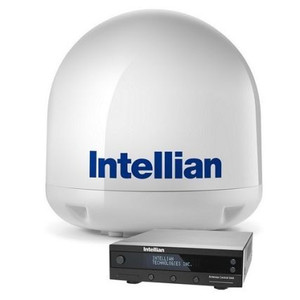

Intellian i3 Satellite Television System w/ 15" Antenna
For DISH Network Systems (Receiver & MIM Included)

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian's super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module). The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

    Built in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
    Travel further North or South with an extended elevation range of 10° to 80°
    Simplicity of design, no external compass or rate sensors required
    Auto satellite switching function from your remote control
    60° per second turn rate ensures signal tracking at high speeds and in rough seas
    Built in GPS enables faster signal acquisition
    Built-in HD module for Ku-band HD TV reception
    Automatic Satellite Search and Identification Function
    2-axis Stabilization provides high speed tracking
    Intuitive controls with a digital information display on the ACU

Specifications

Input Voltage            12 VDC
Antenna                   15" Round
Tracking                   Offshore
HDTV Compatible    Yes
Other Functions        Built-in GPS; GPS input port
Dimensions               Dome: 16.9"D x 17.3"H. ACU: 7"W x 2.1"H x 8.5"D.
Service Period          DISH Network receiver included
Warranty                   Three year parts, one year labor


Item number: B4-I3DNSB
UPC: 886310011529
Package weight: 50 lb

---
