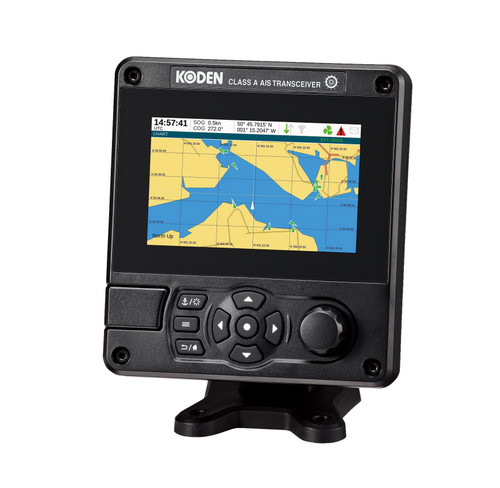

Koden KAT-330 Class A AIS transceiver Display transponder unit w/high resolution 6" Color LCD

,
Hoist Unit, Display, DC Voltage (20-30 VDC)

model: ESR-140MKII-220

Koden ESR-140MkII 10.4-inch Color LCD Sonar

Easy Installation
Brilliant color LCD flat screen allows for installation anywhere, and with built-in flush mounting system installation is easy. You simply install screws at 4 corners from front side and cover with included screw covers. Plus the hoist / lower unit is made small and lightweight for easy carrying and installation.

High-speed Searchlight Sonar
The high-speed Searchlight Sonar beam scans sectors horizontal
and vertical to search up to a 360 degree area around your vessel.
This gives you optimum performance as the searching time is reduced and search omission is prevented to improve the operation efficiency.

Stabilizer function included in standard equipment
The performance of fish detection is improved by automatically correcting the direction of transducer affected by the boat fluctuation. Upper class functions are included in standard equipment.

Easy to operate switches
Set by turning knob and operate by pushing buttons. The simplified operation is accomplished by categorizing the operation system.

Target-lock function
With this lock function, the azimuth and the elevation angle of the beam are controlled automatically to always display the targeted schools of fish on the screen.

Ring marker and cross cursor
The distance to schools of fish is accurately measured by the ring marker, and the distance and azimuth by the cross cursor.

Automatic storing of hoist/lower unit
By setting the boat speed in advance, when the boat speed exceeds the setting value, the transducer unit is stored automatically in order to prevent damages.

Mountable even on a small boat. Compact in size, low in price, and high in quality. Koden ESR-140MKII Sonar Features: · Available frequencies: 180 kHz, 200 kHz or 220 kHz · Brilliant, excellent visibility, compact and light weight color LCD permits flexible installation · Highest-class speed beam scan in searchlight system results in reduction of detecting time and prevention of search failure for efficient fish finding operation · Ring marker and cross cursor provide accurate distance measurement to a target · Stabilizing function automatically rectifies the direction of transducer swayed by pitching and rolling movement of the boat · Target lock function on fish school can help to increase fish catches · Hoist/lower unit is automatically loaded to prevent damages when the boat travels faster than the preset speed · VGA output for an external monitor is available · Remote controller, Audio kit and speaker are available as option Koden ESR-140MKII Sonar Main Specifications Koden ESR-140MkII Sonar Output power 800 W Output frequency 180 kHz or 200 kHz or 220 kHz
