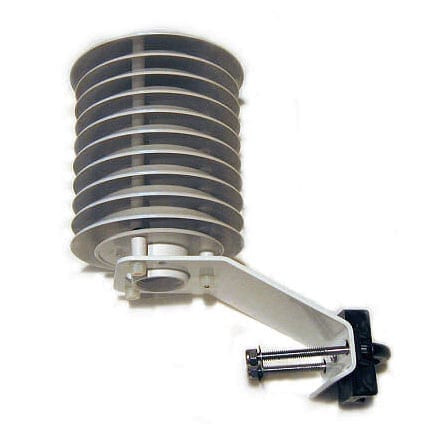

R.M Young 41003 MULTI-PLATE RADIATION SHIELD, UNIVERSAL ADAPTER FOR SENSORS TO 16mm DIAMETER

The Multi-Plate Radiation Shield protects temperature and relative humidity sensors from error-producing solar radiation and precipitation. Compact size and light weight make this shield useful for many applications.

The multiple plates have a unique profile that blocks direct and reflected solar radiation, yet permits easy passage of air. The plate material is specially formulated for high reflectivity, low thermal conductivity, and maximum weather resistance. The rugged U-bolt mounting clamp attaches easily to any vertical pipe up to 2 inches diameter. Model 41003 employs a universal clamp-type adapter to securely hold sensors up to 16 mm diameter.

Specifications

Sensor Types: Accommodates temperature and humidity sensors up to 16 mm in diameter

Radiation Error:
@ 1080 W/m² intensity- Dependent on wind speed
0.4 °C (0.7 °F) RMS @ 3 m/s (6.7 mph)
0.7 °C (1.3 °F) RMS @ 2 m/s (4.5 mph)
1.5 °C (2.7 °F) RMS @ 1 m/s (2.2 mph)

Construction:
UV stabilized white thermoplastic plates, aluminum mounting bracket, white powder coated Stainless steel U-bolt clamp

Dimensions:
13cm (5.1 in) diameter x 26 cm (10.2 in) high
Mounting fits vertical pipe 25-50 mm (1-2 in) diameter

Weight:
Net weight: 0.7 kg (1.5 lb)
Shipping Weight: 1.4 kg (3 lb)
