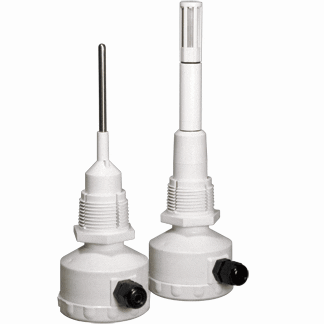

R.M Young 41342LC PLATINUM TEMPERATURE PROBE (C°), 4-20 mA OUTPUT
Write a Review
R.M Young
R.M Young 41342LC PLATINUM TEMPERATURE PROBE (C°), 4-20 mA OUTPUT
- Brand
- R.M Young
- SKU:
- 41342LC
- Availability:
- In Stock
The Model 41342LC Platinum Temperature Probe is an accurate 1000 ohm Platinum RTD temperature sensor and 4-20 mA line driver interface mounted in a weatherproof junction box. The probe is available in Celsius or Fahrenheit calibration. The probe is designed for easy installation in YOUNG Multi-plate and Aspirated Radiation Shields.
Specifications:
Power Requirement: 12 30 VDC, 20mA
Calibrated measuring range:-50 to +50°C
Accuracy at 0°C: ±0.3°C
Time Constant: 42 seconds in 43408 shield.
Sensor type: 1000? Platinum RTD
Output signal: 4-20 mA
Recommended Cable: 2 conductor shielded, 22 AWG (#18641)
Recommended Radiation Shields:
Model 43502 Aspirated Radiation Shield
Model 41003P Multi-Plate Radiation Shield
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 4 × 4 in |
