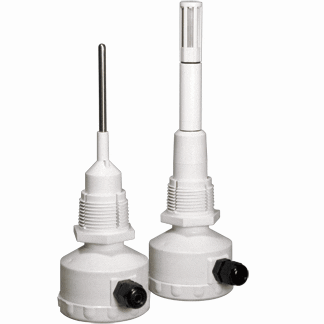

R.M Young 41382VF RELATIVE HUMIDITY / TEMPERATURE PROBE (F°), 0-1 VDC OUTPUTS

The Model 41382VF Relative Humidity/Temperature Probe combines high accuracy humidity and temperature sensors in a single probe. The output signal is 0-1 V (standard) or 0-5 V (user selected option) for both relative humidity and temperature. RH range is 0-100%. Temperature range is -50 to +50°C.

RELATIVE HUMIDITY:
Measuring range: 0-100% RH
Accuracy at 23°C: ±1%
Stability: Better than ±1%RH per year
Response Time: 10 seconds (Without Filter)
Sensor type: Rotronic Hygromer

TEMPERATURE:
Measuring Range: -50 to +150°F
Accuracy at 23°C: ±0.3°C
Response Time: 10 seconds (Without Filter)
Sensor type: Platinum RTDW

Output signal: 0-1 or 0-5 VDC (jumper option)
Power Required: 8-30 VDC at 7 mA
Recommended Cable: 5 conductor shielded, Young 18446
