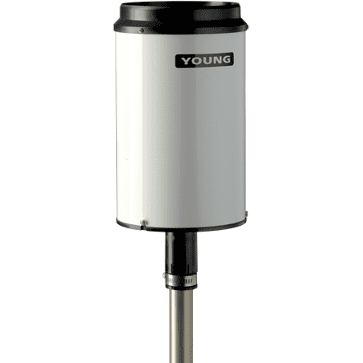

R.M Young 52202H TIPPING BUCKET RAIN GAUGE, 230V / 50-60Hz
$672.00
- Brand
- R.M Young
- SKU:
- 52202H
- Availability:
- In Stock
R.M Young 52202H TIPPING BUCKET RAIN GAUGE, 230V / 50-60Hz
The YOUNG Model 52202H Tipping Bucket Rain Gauge meets the specifications of the World Meteorological Organization (WMO). Extensive use of molded thermoplastic components gives maximum
performance and resistance to corrosion. Model 52202 is heated for year-round use for non-teperate climates.
SPECIFICATIONS
Catchment Area: 200 cm2
Resolution: 0.1 mm per tip
Accuracy:
2 % up to 25 mm/hr,
3% up to 50 mm/hr
Output: Magnetic reed switch, normally open
Contact Rating: 24V AC/DC 400mA MAX
Operating Temp: -20°C to + 50°C (heated)
Power: 18 Watts @24VAC for heater
Mounting: Standard 1 Inch Pipe Size, Ø 34mm (1.34?)
Weight | 6 lbs |
---|---|
Dimensions | 10 × 8 × 8 in |
