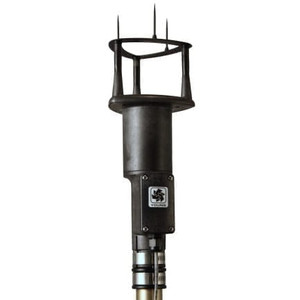

R.M Young 81000 ULTRASONIC ANEMOMETER - 3 AXIS

The YOUNG Model 81000 Ultrasonic Anemometer is a 3-axis, no-moving-parts wind sensor. It is ideal for applications requiring fast response, high resolution and three-dimensional wind measurement.

The sensor features durable corrosion-resistant construction with 3 opposing pairs of ultrasonic transducers supported by stainless steel members. Each 81000 is individually wind-tunnel calibrated. Wind and sonic temperature data is available on four voltage output channels. Serial RS-232 and RS-485 outputs are available as well. The sensor installs on standard 1 inch pipe.

Specifications

Wind Speed: 0 to 40 m/s (0 to 90 mph)
Resolution: 0.01 m/s
Threshold: 0.01 m/s
Accuracy: ±1% ±0.05m/s (30 m/s), ±3% (40 m/s)

Wind Direction: 0 to 360 degrees
Elevation Range: ±60 degrees
Resolution: 0.1 degree
Accuracy:
± 2 degrees (30 m/s), ± 5 degrees (40 m/s)

Speed of Sound: 300 to 360 m/s
Resolution: 0.01 m/s
Accuracy: ± 0.1% ± 0.05 m/s (30 m/s)

Sonic Temperature: -50 to +50°C
Resolution: 0.01 m/s
Accuracy: ±2°C (30 m/s)

Serial Output: User Programmable ASCII, RS-232 or RS-485
1200 to 38400 baud
4 to 32 Hz (user-selected)
Units: m/s, cm/s, mph, knots, km/h

Analog Voltage Outputs:
4 voltage outputs, 0 to 5000 mV

Power Requirement: 12 to 24 VDC, 110 mA

Operating Temperature: -50 to +50°C

Dimensions:
56cm high x 17cm radius (3 support arms)
Weight: 1.2 kg (2.6 lb)
Shipping Weight: (13.6 lb)
