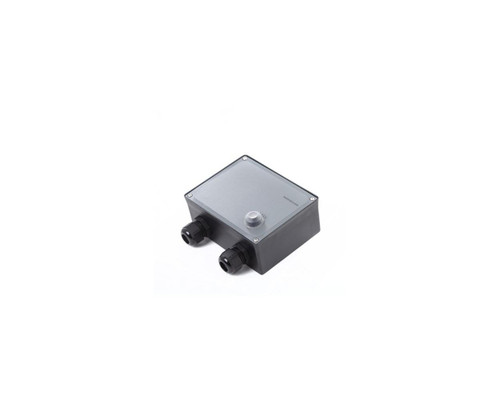

Zenitel PhonTech Call Unit P-9004
The P-9004 is a weatherproof Command Intercom System (Talk-Back) Call Unit substation for industrial and outdoor environments. It interfaces a loudspeaker for 2-way communication.
The unit is equipped with a CALL button for attention request.
Key Features:
- 2-way loudspeaker connection
- CALL button
- Complies with IEC 60945 Standard for Marine Equipment
- RMRS type approval
MECHANICAL Specifications:
| Dimensions (WxHxD) | 130x124x52 mm (depth 65 mm including call button) |
| Weight | 0.3 kg |
| Color | RAL 9005/9006 |
| Material | PC / ABS blend |
| Mounting | Wall |
| Fixing | 4 x M3 bolts |
| Access | Front |
| Cable Entry | Bottom/Top |
| Gland Type | 2 x M20 |
ELECTRICAL Specifications:
| Power Supply | From central/line supply |
| Termination | Screw terminals ? 1.5 mm2 |
| Compass Safe Distance | > 5 m |
ENVIRONMENTAL Specifications:
| Temperature | -25°C to +55°C (Storage: -25°C to +70°C) |
| Humidity | +93% (at +40°C) |
| Ingress Protection Rating | IP-56 |
| Brand | Zenitel |
|---|
