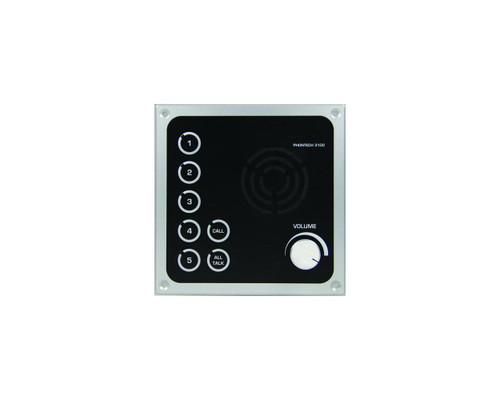

Zenitel Phontech CIS Talkback Master Station P-3100
Elevate onboard communication with our CIS Talkback Master Station P-3100, an integral component of our Maritime Talk Back System designed for unparalleled clarity and reliability in maritime environments. This system facilitates seamless point-to-point, group, and all-call functionality, alongside emergency Public Address capabilities, making it essential for efficient and safe maritime operations.
Features and Benefits:
- Comprehensive Connectivity: Supports communication with up to 5 substations/loudspeaker lines, ensuring wide coverage across the vessel.
- Flexible Control Outputs: Includes 4 control outputs for external call signal devices, compatible with substation types P-9003, P-9016, P-9135.
- Enhanced Audio Components: Integrated microphone and loudspeaker, with options for connecting gooseneck or handheld microphones and additional external loudspeakers.
- User-Centric Design: Front volume control for easy adjustments and bridge wing extensions for expanded usability.
- Powerful Output: Delivers 12W output power, expandable with line amplifiers for broader communication reach.
Practical for maritime operations, the CIS Talkback Master Station P-3100 offers a reliable communication system. It supports essential, clear communication for safety and operational efficiency onboard, catering to the needs of officers and crew alike.
Key Features:
- Complies with IEC 60945 Standard for Marine Equipment
- DNV Type Approval
- CCS Type Approval
MECHANICAL Specifications:
Dimensions (WxHxD) | 144x144x100 mm |
Weight | 2.5 kg |
Color | RAL 9005 |
Material | Aluminium / PC |
Mounting | Flush / Console |
Fixing | 4 x M4 bolts |
Access | Front |
Cable Entry | Rear |
ELECTRICAL Specifications:
Power Supply | 24 VDC (22-32 VDC) |
Power Consumption | 25W (peak), 3W (typical) |
Fuse | 5x20 mm, 1A F |
Heat Dissipation (typical/max) | < 3W / 10W |
Termination | Screw terminals ? 1.5mm2 |
Compass Safe Distance | > 2.2 m |
AMPLIFIER(S) Specifications:
Frequency Range | 300-3400 Hz |
Power Output | 10W / 4? (Substation Lines 1-5) |
ENVIRONMENTAL Specifications:
Temperature | -15°C to +55°C |
Humidity | +93% (at +40°C) |
Ingress Protection Rating | IP-22 |
Brand | Zenitel |
---|
