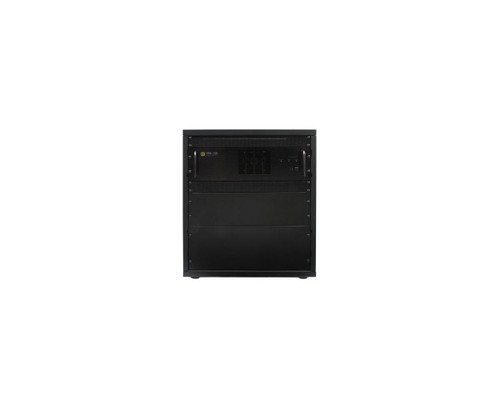

ZENITEL SPA-120-V2 PA Main Unit, 19" Rack, 120W VPA Amplifier
Write a Review
Write a Review
Zenitel
ZENITEL SPA-120-V2 PA Main Unit, 19" Rack, 120W VPA Amplifier
$4,912.08
- Brand
- Zenitel
- SKU:
- 3005010079
- Condition:
- New
ZENITEL SPA-120-V2 PA Main Unit, 19" Rack, 120W VPA Amplifier
The SPA series public address and general alarm system combines quality and value. The SPA-V2 is an improved second generation system which in first generation version has been installed in thousands of ships around the world. The basic functionality module can support a single, non-redundant system and delivered as a 19" rack which contains main board, minimum one amplifier and optional functions.
Optional functions are:
- Number of michrophone and alarm panels
- Dual system, redundancy
- Additional amplifiers
- Alarm generators
- PABX Interface
- Redundant power supply
- Digital message recorder
- Chime generator
- Entertainment
- Output for voice data recording
Key Features:
- Input & priorities for 3 microphone panels
- Input from CIS 3130 Talk Back system for PA control
- Output to CIS Talk Back system
- Input from entertainment system
- PABX Input with zone presets
- 6 zones 100 V signal output
- Input for 2 alarm panels
- 2x Fire alarm input, all call and zone selection (fire crew)
- Alarm mute during PA message
General Specifications
| Rack size (WxHxD) mm | 525 x 584 x 525 (19 12HU) |
| Material | Black painted steel |
| Mounting | Floor |
| Voltage input | Mains 230 VAC & 24 VDC (110V AC on req.) |
| Connections | Plugable terminals for max. 2.5mm2 cable |
| Cable requirements | Signal cable 0.75mm2 twisted outer screen |
| Amplifier | 1x VPA-120, details on separate datasheet |
| Output | 100V -120W |
| Operating temperature | -15 to +55°C |
| Relative humidity | <95% |
| Safety | EN 60065 |
| Tested according | EN 60945 |
| Optional rack sizes | 19 12,16, 20,24,30 and 40HU |
| Environmental Condition | Protected |
| Brand | Zenitel |
|---|
