Eaton BP24V15RT2U - BP24V15RT2U
Write a Review
Eaton
Eaton BP24V15RT2U - BP24V15RT2U
- Brand
- Eaton
- SKU:
- BP24V15RT2U
- Condition:
- New

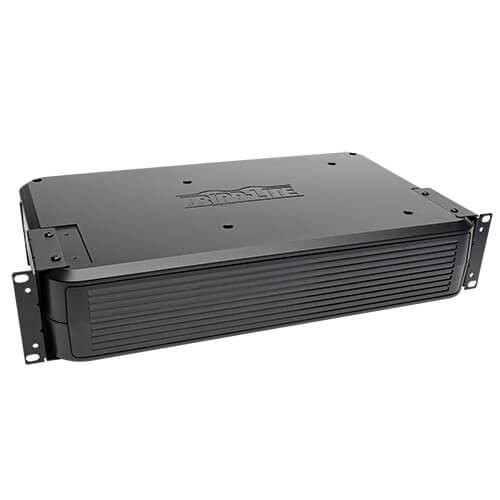

The BP24V15RT2U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 24V rack-mount and tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included mounting accessories support 2U rack-mount installation in 2- or 4-post racks with additional support for upright tower placement. Wall-mount installation option available. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Compatible with these UPS systems: OMNIVS1500XL, OMNIVSINT1500XL, SMART1500LCDXL, SMART750RMXL2U, SMART750XLA, SU750RTXL2U, SU750RTXLCD2U, SU750XL, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU1000XLCD, SUINT1000RTXL2UA and other UPS systems that specify the use of this battery pack.
- Offers extended-run UPS operation when used in conjunction with compatible 24V DC UPS systems
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Included mounting brackets support upright tower and 2U rack-mount installation in 2- or 4-post racks
- Included brackets also support upright tower installation
- 2POSTRMKITWM option enables wall-mount installation
- NOTE: LIMIT OF 1 BP24V15RT2U PER UPS, SEE BP24V70-3U or BP24V36-2US FOR MULTI-PACK COMPATIBILITY
- BP24V15RT2U external battery pack with attached DC cabling
- 2- and 4-post rack-mount/tower installation brackets
- Owner's manual
OVERVIEW
| UPC Code | 037332141538 |
INPUT
| Input Phase | Single-Phase |
BATTERY
| DC System Voltage (VDC) | 24 |
| UPS Connection | Attached 24VDC 75amp connector |
PHYSICAL
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount; 2 post 19 inch rackmount; Tower |
| Installation Form Factors Supported with Optional Accessories | Wallmount ( 2POSTRMKITWM ) |
| Minimum Required Rack Depth (cm) | 35.56 |
| Optional Mounting Accessory Notes | 2POSTRMKITWM enables wall-mount installation |
| Shipping Dimensions (hwd / cm) | 18.29 x 54.00 x 38.00 |
| Shipping Weight (kg) | 12.26 |
| Unit Dimensions (hwd / cm) | 8,86 x 44,02 x 27,13 |
| Unit Weight (kg) | 11.03 |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; CE (Europe); Trade Agreements Act (TAA) |
WARRANTY & SUPPORT
| Product Warranty Period (International) | 1-year limited warranty |
| Optional Coverage | Extended warranty options available |
