Eaton SVXBM - SVXBM

Write a Review

$3,792.60

Brand: Eaton
SKU:: SVXBM
UPC:
Condition:: New

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Features

Gives Your Compatible UPS System Extended Runtime

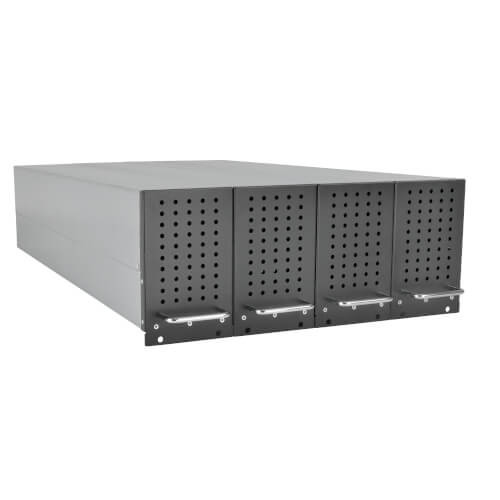

The SVXBM is compatible only with SVX-Series small- and medium-frame 3-phase UPS systems with an open battery compartment. The +/-240V DC battery module is a set of four separately packaged battery trays, each with a pre-wired string of 10 internal batteries designed for easy and fast installation inside the compartment. Just slide the battery tray into the open slot and slide the module into the cabinet until the connectors make full contact. Then, secure the tray into place with the included screws.

One-Year Warranty and Environmentally Responsible Design

The SVXBM comes with a one-year warranty. It? manufactured in compliance with strict RoHS specifications.

Composition

Ships as 4 separate packages, each labelled ?VXTRAY?(4 SVXTRAY = one SVXBM)
Each package includes 10 pre-installed and pre-wired internal batteries
Installation hardware
See UPS owner? manual for installation instructions

Specifications

OVERVIEW

UPC Code	037332193414
Accessory Type	Internal Battery Pack
Accessory Class	UPS Accessories

BATTERY

DC System Voltage (VDC)	+/-240V DC
UPS Connection	Each battery tray self-connects to the DC Bus when installed

PHYSICAL

Shipping Dimensions (hwd / cm)	25.40 x 30.23 x 86.61
Shipping Weight (kg)	33.20
Unit Dimensions (hwd / cm)	16,99 x 10,69 x 76,68
Unit Weight (kg)	26.00

STANDARDS & COMPLIANCE

Product Compliance

RoHS

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

1-year limited warranty
