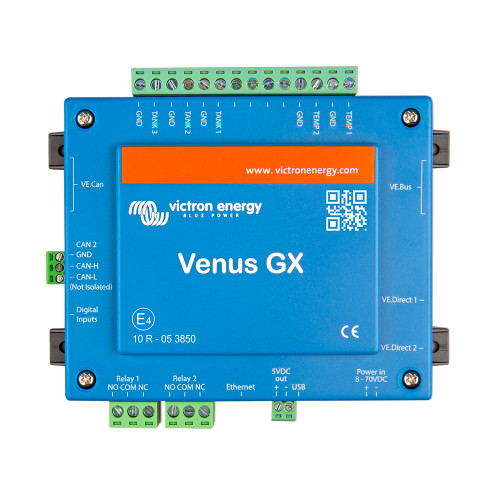

Victron Venus GX Control - No Display

The Venus GX is the communication-center of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM). As soon as you 'log on' Venus GX provides an instant overview of your system: Battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator. Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime.

This powerful application also provides for hassle-free diagnostic checks and analysis of archived information. The Venus GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night. Remote Console provides visual access to the live data and settings of your Venus GX, and because it's remote - you can do that from anywhere in the world. The Venus GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.

Planning a trip? Remote monitoring of your Venus GX allows you to make sure your boat or motorhome are ready to go. Venus GX also allows you to talk to connected equipment from other manufacturers. And with Venus GX you can check the tanks, too

Venus GX Control - No Display

Features:

• Venus GX The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.
• VRM Online Portal All readings are forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression, try the demo on . See also the screenshots below.
• Remote Console on VRM The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in WiFi Access Point, or on the local LAN/WiFi network.
• Automatic genset start/stop A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run.
• Data logging When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis.
• Supported products - Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection). - EasySolar 1600VA - BlueSolar MPPT Solar Chargers with a VE.Direct port. - BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. - SmartSolar MPPT 150/70 and the MPPT 150/100 with VE.Can port. When multiple BlueSolar MPPTs or SmartSolar MPPTs with VE.Can are used in parallel, all the information is combined as one. See also our blog-post about synchronizing multiple MPPT 150/70 solar chargers. - BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this. - BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable. - Lynx Ion + Shunt - Lynx Ion BMS - Lynx Shunt VE.Can - Skylla-i battery chargers - NMEA2000 tank sensors - A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position. - Fronius PV Inverters When more than two VE.Direct products must be connected, USB can be used.

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Victron Energy Venus GX provides intuitive control and monitoring for all Victron power systems. Very suitable for data logging and the heart of the ESS system.
SKU: NVN-82926
MPN: BPP900400100
UPC: 8719076037897
