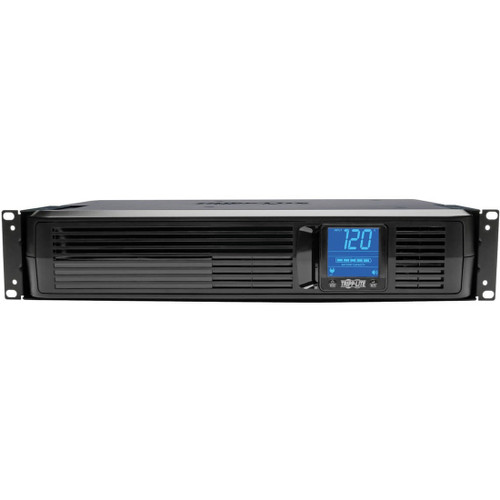

Eaton SMART1500LCD - SMART1500LCD

The SMART1500LCD SmartPro LCD 120V, 1500VA/900W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Eight NEMA 5-15R outlets protect against surges, as well as provide up to 11.8 minutes of UPS battery support at half load (450W) and 4.4 minutes of support at full load (900W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.

NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen with dimmer shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free download), the SMART1500LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Reliable Battery Backup

• Provides 1500VA/900W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
• Supports 50% load (450W) up to 11.8 minutes and full load (900W) up to 4.4 minutes
• Audible alarm indicates loss of utility power or low battery
• Battery access door enables hot-swappable, user-replaceable internal batteries

Optimized Outlets

• 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data

Automatic Voltage Regulation (AVR)

• Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power

Rotatable LCD Status Screen

• Large LCD screen offers real-time status information regarding operating mode, voltage, load level, battery charge percentage and estimated runtime in minutes
• UPS configuration options via front panel LCD include battery self-test, external battery pack configuration, alarm on/off status and LCD brightness
• Rotates for easy viewing in both horizontal and vertical installations

AC Line, Tel/DSL and Ethernet Surge Suppression

• Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
• Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment's performance

• Brownout
• Over Voltage

• SmartPro 1500 VA Rackmount/Tower Digital UPS
• USB Cable
• Serial Cable
• Mounting Hardware
• Manual with Warranty Information

• Cold Start Capable
• Automatic Voltage Regulation (AVR)
• LCD display indicates input voltage, battery capacity and a variety of operating conditions
• Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button

• CSA
• NOM
• UL1778
• FCC Class B
• FCC part 68
