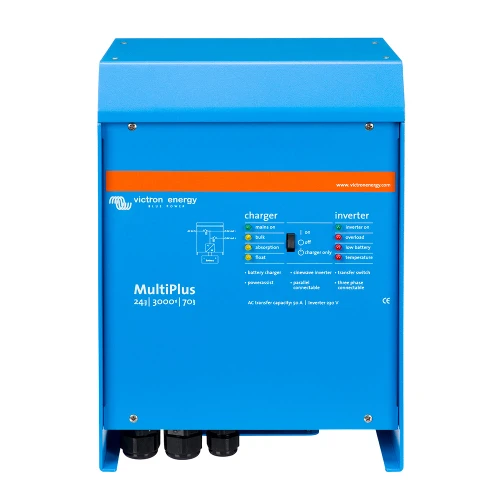

Victron MultiPlus Inverter/Charger 24V DC - 3000W -120V AC w/70AMP Battery Charger - 50AMP Transfer Switch
Write a Review
Write a Review
Victron Energy
Victron MultiPlus Inverter/Charger 24V DC - 3000W -120V AC w/70AMP Battery Charger - 50AMP Transfer Switch
$1,168.75
- Brand
- Victron Energy
- SKU:
- PMP243021102
- UPC:
- 8719076024019
- Condition:
- New
MultiPlus 24/3000/70-50 120V VE.Bus - The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features. The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities. When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.
Victron MultiPlus inverter/charger 24/3000/70-50 MultiPlus is a powerful true sine wave inverter, a precision battery charger with adaptive charging technology, and implemented in a compact housing switch High-speed AC conversion. In addition to these main functions, MultiPlus also has some advanced functions, as described below. The main output has an uninterrupted function. In the event of a grid failure or the shore/generator power supply is disconnected, MultiPlus will take over the power supply of the connected load. This happens very quickly (less than 20 milliseconds), so computers and other electronic devices will continue to operate without interference. The second output is valid only when there is AC power on the input of the MultiPlus. Loads that should not be discharged (such as water heaters) can be connected to this output (the second output can be used for models with a rated power of 3kVA or higher).
SKU: NVN-82639
MPN: PMP243021102
UPC: 8719076024019
Victron MultiPlus Inverter/Charger 24V DC - 3000W w/70AMP Battery Charger
Professional Marine Power Management System with Pure Sine Wave Technology
The Victron MultiPlus Inverter/Charger 24V 3000W represents the pinnacle of marine electrical engineering, combining pure sine wave inversion, adaptive charging, and hybrid PowerAssist technology in one sophisticated unit. Designed for professional marine applications and serious cruising vessels, this system delivers uncompromising power quality and intelligent energy management.
Pure Sine Wave Inverter Excellence
True Sine Wave Power Quality
- 3000W Continuous Output: Pure sine wave power for sensitive electronics and appliances
- 24V DC Input: Optimized for larger marine electrical systems
- 120V AC Output: Standard household voltage for all equipment
- Clean Power Delivery: Perfect for computers, medical equipment, and precision instruments
- Low Harmonic Distortion: Protects sensitive electronic equipment
Advanced Motor Starting Capability
- High Surge Rating: Handles demanding motor starting loads
- Refrigeration Compatible: Reliable operation of marine refrigeration systems
- Power Tool Support: Run workshop equipment and power tools
- Universal Compatibility: Operates all standard AC equipment
Intelligent 70A Battery Charging System
Adaptive Charging Technology
- 70 Amp Charging Capacity: Rapid recharging of large 24V battery banks
- Multi-Stage Charging: Optimized charging profile for battery longevity
- Temperature Compensation: Automatic adjustment for optimal battery health
- Battery Type Selection: Programmable for gel, AGM, or flooded batteries
- Dual Bank Capability: 1+1 charging bank configuration
Smart Charging Features
- Absorption Phase: Controlled charging to achieve full capacity
- Float Maintenance: Long-term battery conditioning
- Equalization Option: Periodic maintenance for flooded batteries
- Auto-Start Function: Generator start capability when batteries are low
Revolutionary PowerAssist Technology
Intelligent Load Management
- AC Input Boost: Supplements shore power with battery power during peak demands
- Generator Protection: Prevents overloading of limited AC sources
- Automatic Load Sharing: Seamlessly manages power between sources
- Current Limiting: Programmable input current limits prevent breaker trips
- Dynamic Response: Instant power assistance when loads increase
Uninterruptible Power Supply (UPS) Function
Seamless Power Continuity
- Ultra-Fast Transfer: Less than 20 milliseconds switching time
- Computer Protection: No interruption to sensitive equipment
- Automatic Operation: No manual intervention required
- Shore Power Loss: Instant battery backup activation
- Generator Failure: Immediate power continuation
Professional System Integration
Parallel Operation Capability
- Up to 6 Units: Parallel connection for massive power output
- Split Phase Operation: 240V split phase configuration available
- Three Phase Option: Commercial-grade three phase systems
- Load Balancing: Automatic load distribution across units
- Redundant Operation: System continues if one unit fails
Advanced Monitoring & Control
- VRM Remote Monitoring: Monitor from anywhere via internet
- Color Control GX: Advanced system control and monitoring
- Multi-Platform Access: Phone, tablet, laptop, or PC compatibility
- Real-Time Data: Live system performance monitoring
- Historical Logging: Long-term performance analysis
Technical Specifications
Inverter Performance
- Input Voltage: 19-33V DC (24V nominal)
- Output Voltage: 120V AC ± 2%
- Output Frequency: 60 Hz ± 0.1%
- Continuous Power: 3000W
- Peak Power: 6000W (5 seconds)
- Waveform: Pure sine wave
- Efficiency: 94% at rated load
- No Load Consumption: 20W (search mode: 2.5W)
Battery Charger Specifications
- AC Input Voltage: 94-140V AC (120V nominal)
- AC Input Frequency: 45-65 Hz
- Charging Voltage: 24V DC system
- Maximum Charge Current: 70 Amperes
- Charging Algorithm: 4-stage adaptive
- Temperature Compensation: -96mV/°C
Transfer Switch
- Transfer Rating: 50 Amperes maximum
- Transfer Time: <20 milliseconds (UPS function)
- Input Current Limit: 3-50A programmable
Professional Marine Applications
Commercial Vessels
- Charter Boats: Reliable power for guest comfort and safety systems
- Fishing Vessels: Power for electronics, refrigeration, and equipment
- Research Vessels: Clean power for sensitive scientific instruments
- Workboats: Robust power systems for marine operations
Luxury Yachts
- Extended Cruising: Energy independence for long passages
- Onboard Comfort: Power for all luxury amenities
- System Reliability: Redundant power for critical systems
- Silent Operation: Quiet inverter operation for guest comfort
Safety & Protection Features
Comprehensive Protection Systems
- Over/Under Voltage: Input and output voltage protection
- Over Temperature: Thermal shutdown and derating
- Overload Protection: Automatic load disconnection
- Short Circuit: Instant fault protection
- Ground Fault: GFCI protection available
- Reverse Polarity: DC input protection
Installation & Configuration
Professional Installation Features
- Compact Design: Space-efficient installation
- Hardwired Connections: Secure AC and DC terminations
- Programmable Settings: Customizable operation parameters
- Remote Panel Compatible: Optional remote control panels
- Cooling: Variable speed fan for quiet operation
Why Choose Victron MultiPlus?
- Pure sine wave output for sensitive electronics protection
- Revolutionary PowerAssist technology prevents generator overload
- Ultra-fast UPS function ensures uninterrupted power
- Parallel operation capability up to 18kW total power
- Advanced remote monitoring and control capabilities
- Proven reliability in harsh marine environments
- Comprehensive protection systems ensure safety
- Professional-grade construction and warranty support
Professional Support & Warranty
Backed by Victron Energy's comprehensive warranty and worldwide technical support network. Professional installation and configuration recommended for optimal performance and warranty compliance.
Frequently Asked Questions
What's the difference between this and modified sine wave inverters?
The Victron MultiPlus produces true pure sine wave output identical to shore power, making it safe for all electronics, computers, medical equipment, and sensitive instruments. This eliminates the potential issues with modified sine wave inverters like equipment damage, reduced efficiency, or operational problems.
How does PowerAssist technology work?
PowerAssist monitors your AC input current and automatically supplements it with battery power when demand exceeds the programmed limit. This prevents generator overload or shore power breaker trips while allowing you to run more equipment than your AC source can handle alone.
Can I parallel multiple MultiPlus units?
Yes, up to 6 MultiPlus units can be connected in parallel for higher power output (up to 18kW total). You can also configure them for split-phase 240V or three-phase operation for commercial applications.
What size battery bank is recommended?
For optimal performance with 3000W continuous output, a minimum 600-800 amp-hour 24V battery bank is recommended. Larger banks provide longer runtime and better battery life. Use quality deep-cycle marine batteries or lithium systems.
How fast does the UPS function switch?
The transfer time is less than 20 milliseconds, which is fast enough that computers, medical equipment, and other sensitive electronics continue operating without interruption when shore power is lost or restored.
Technical Specifications
Inverter Performance
- Input: 19-33V DC (24V nominal)
- Output: 120V AC ± 2%, 60Hz ± 0.1%
- Continuous Power: 3000W
- Peak Power: 6000W (5 seconds)
- Efficiency: 94% at rated load
- Waveform: Pure sine wave
- THD: <3% (resistive load)
Battery Charger
- AC Input: 94-140V AC, 45-65Hz
- Charge Current: 70A maximum
- Charge Voltage: 24V DC system
- Algorithm: 4-stage adaptive
- Banks: 1+1 configuration
- Temperature Comp: -96mV/°C
Transfer Switch
- Rating: 50A maximum
- Transfer Time: <20ms (UPS mode)
- Input Current Limit: 3-50A programmable
- Frequency Range: 45-65Hz
General Specifications
- Operating Temperature: -40°C to +65°C
- Humidity: 95% non-condensing
- Altitude: 2000m maximum
- Ventilation: Variable speed fan cooling
- Mounting: Wall mount or shelf installation
MultiPlus Inverter/Charger 24 VDC - 3000W - 70AMP Battery Charger - 50AMP Transfer Switch
Features:
- Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
- Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
- Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
- Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
- Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...
Victron MultiPlus inverter/charger 24/3000/70-50 MultiPlus is a powerful true sine wave inverter, a precision battery charger with adaptive charging technology, and implemented in a compact housing switch High-speed AC conversion. In addition to these main functions, MultiPlus also has some advanced functions, as described below. The main output has an uninterrupted function. In the event of a grid failure or the shore/generator power supply is disconnected, MultiPlus will take over the power supply of the connected load. This happens very quickly (less than 20 milliseconds), so computers and other electronic devices will continue to operate without interference. The second output is valid only when there is AC power on the input of the MultiPlus. Loads that should not be discharged (such as water heaters) can be connected to this output (the second output can be used for models with a rated power of 3kVA or higher).
SKU: NVN-82639
MPN: PMP243021102
UPC: 8719076024019
03 · The numbers
Technical specifications
| Brand | Victron Energy |
| Model | Victron MultiPlus Inverter/Charger 24V DC - 3000W -120V AC w/70AMP Battery Charger - 50AMP Transfer Switch |
| SKU / MFR# | 82639 |
0 Reviews Hide Reviews Show Reviews
Victron Energy
Victron Multiplus Inverter/Charger 24V DC - 3000W - 120V AC w/70AMP Battery Charger - 50AMP Transfer Switch (UL LISTED)
$1,184.90
Multiplus Inverter/Charger 24 VDC - 3000W - 70AMP Battery Charger - 50AMP Transfer Switch (UL LISTED)Features:
Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger...
Victron Energy
Victron MultiPlus Inverter/Charger 12V DC - 3000W - 120V AC w/120AMP Battery Charger - 50AMP Transfer Switch (UL LISTED)
$1,168.75
MultiPlus 12/3000/120-50 120V VE.Bus (UL) - The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter,...
Victron Energy
Victron MultiPlus Inverter/Charger 12 VDC - 3000W - 120vAC w/120AMP Battery Charger - 50AMP Transfer Switch
$1,073.55
MultiPlus 12/3000/120-50 120V VE.Bus - The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive...
Victron Energy
Victron MultiPlus Inverter/Charger 12 VDC - 2000W - 80AMP Battery Charger - 50AMP Transfer Switch
$913.99
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology,...
Victron Energy

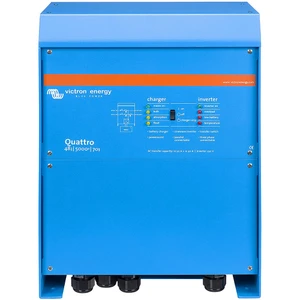

Victron Quattro Inverter/Charger 48V DC - 5000W - Dual 100AMP 120V AC Inputs - 70AMP Battery Charger - Stackable
